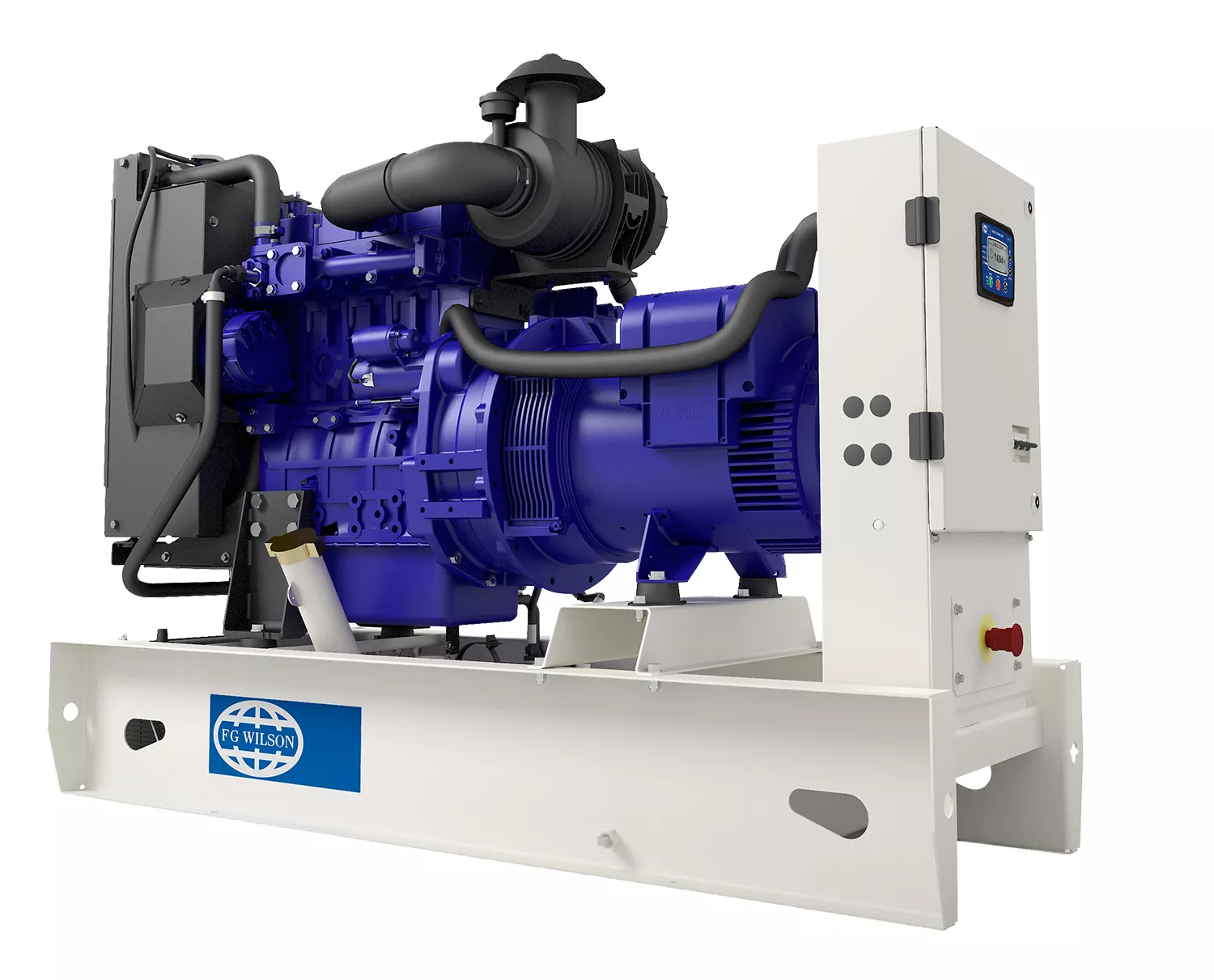

P7.5-1S Generator Set
- place Find Dealer
- person Account
-
helpHelp Center
-
Guided Tour
Requires cookie settings to view content
- Contact Us
-
Guided Tour
Small Range <220 kVA P7.5-1S
Request A Price Find DealerKey Specs
- Minimum Rating
- 6.8 kVA / 6.8 kW
- 6.8 kVA / 6.8 kW
- Maximum Rating
- 7.5 kVA / 7.5 kW
- 7.5 kVA / 7.5 kW
- Emissions/Fuel Strategy
- Fuel Optimised
- Fuel Optimised
Benefits
Up To 2000L Extended Capacity Fuel Tanks
Larger fuel tanks allow for longer periods of time between refueling
As Low As 57 dBA Super silent enclosures
Super Silent enclosures offer excellent sound attenuation with sound as low as 57 dBA at 7m
Stay In Control Telematics Ready
Telematics availability allows for remote access to genset controls ensuring your always in control were ever you are
Features At A Glance
Displaying 1-6 of 5

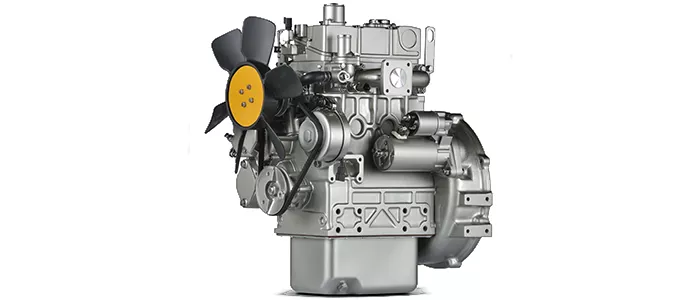

Industry Leading Perkins Engine
Industry Leading Perkins Engine
The Perkins 400 Series engines offer highly competitive performance, fuel economy and EUIIIa Emissions compliance on selected nodes. These engines have been designed and proven in the field in a wide variety of applications. Not only are they reliable but also offer low cost of ownership and excellent fuel economy.

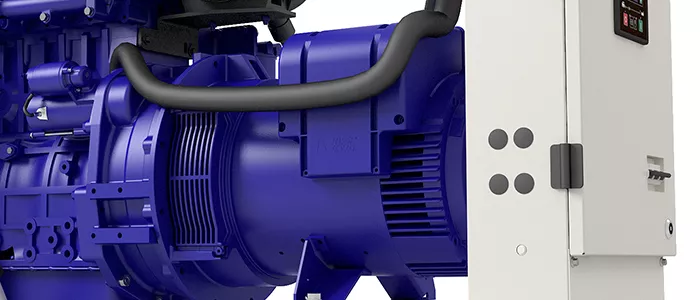

Alternator
Alternator
Benefiting from a choice of leading alternators, the FG Wilson FGL and Leroy Somer brand alternators are known worldwide for providing power generation expertise and solutions offering longlife products with low maintenance. Offering excellent performance and motor starting capacility they have been designed specifically to suit the FG Wilson generator set
FG100 Control Panel
FG100 Control Panel
The FG100 offers simple, intuitive menu navigation and control of your generator set operations, key features such as remote monitoring allow you to control your generator set with ease. Key information is displayed via the LCD display using universally recognised symbols, eliminating the need for complex instructions or language settings. Rainbow SCADA PC software allows for remote ol of your generator set.

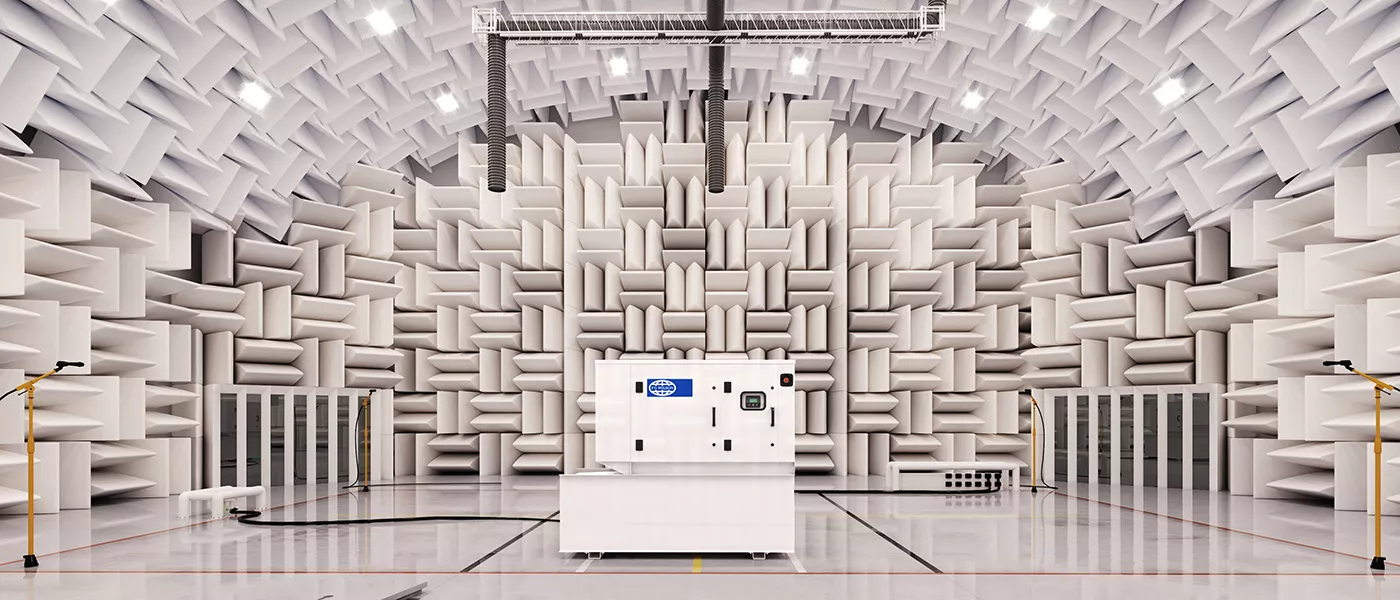

Testing & Validation
Testing & Validation
Fully prototype tested with certified torsional vibration analysis available

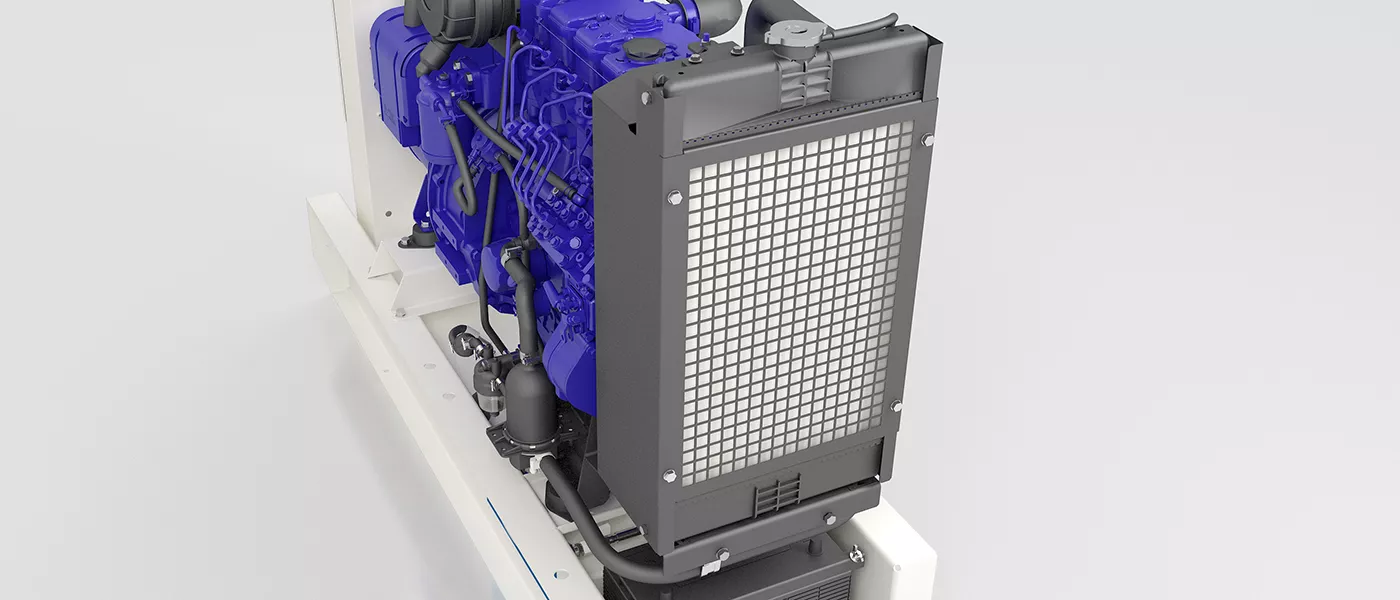

Cooling System
Cooling System
Designed to operate in ambient temperatures up to 55oC
Product Specifications for P7.5-1S
Generator Set Specifications
| Minimum Rating | 6.8 kVA / 6.8 kW 6.8 kVA / 6.8 kW |
| Maximum Rating | 7.5 kVA / 7.5 kW 7.5 kVA / 7.5 kW |
| Emissions/Fuel Strategy | Fuel Optimised Fuel Optimised |
| 50 Hz Prime | 6.8 kVA / 6.8 kW 6.8 kVA / 6.8 kW |
| 50 Hz Standby | 7.5 kVA / 7.5 kW 7.5 kVA / 7.5 kW |
| 60 Hz Prime | - / - - / - |
| 60 Hz Standby | — — |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 RPM 1500 RPM |
| Voltage | 230-240 Volts 230-240 Volts |
| 50 Hz Prime Rating | These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours. |
| 60 Hz Prime Rating | These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3). |
| 50 Hz Standby Rating | Standard reference conditions 25�C (77�F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2. Standard reference conditions 25�C (77�F) Air Inlet Temp, 100m (328 ft) A.S.L. 30% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2. |
Engine Specifications
| Engine Model | Perkins® 403A-11G1 Perkins® 403A-11G1 |
| Bore | 77 mm (3 in) 77 mm (3 in) |
| Stroke | 81 mm (3.2 in) 81 mm (3.2 in) |
| Governor Type | Mechanical Mechanical |
| Displacement | 1.1l (69 cu. in) 1.1l (69 cu. in) |
| Compression Ratio | 23:01 23:01 |
P7.5-1S Standard Equipment
Engine
- Air Cleaner
- Lube oil drain valve
- Engine filled with lubrication oil
- High Coolant Temperature Shutdown
- Low Oil Pressure Shutdown
Cooling
- Package mounted radiator
- Radiator & Cooling Fan
- Coolant Drain Valve
- Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive
- Cooling System filled with Coolant mix
Exhaust
- Exhaust flange outlet
- Exhaust stub pipe and gasket
Fuel
- 8 Hr Fuel Tank or Skidbase
- Fuel Fittings for Local and Remote Feed
Alternator
- FG Wilson Alternator
- SHUNT Excitation
- IP23 Protection
Control Panel
- FG100
Mounting
- Skid Base, Formed Steel
- Anti-vibration mounts
- Base, Formed Steel with Skid base or Single wall Fuel Tank
- Certified Base Mounted Lifting Eyes, and Rear Drag Eyelets
- Anti-vibration mounts
- Battery Tray and Cables
P7.5-1S Optional Equipment
Exhaust
- Industrial, Residential, Critical Silencers
Alternator
- Leroy Somer Alternator
- Quadrature Droop Kit
- Anti-Condensation Heater and Panel Circuitry
Control Panels
- DSE4520
- DSE7320
- DSE7410
- Deep Sea DSE7420
Starting/Charging
- Lead Acid battery (Dry)
General

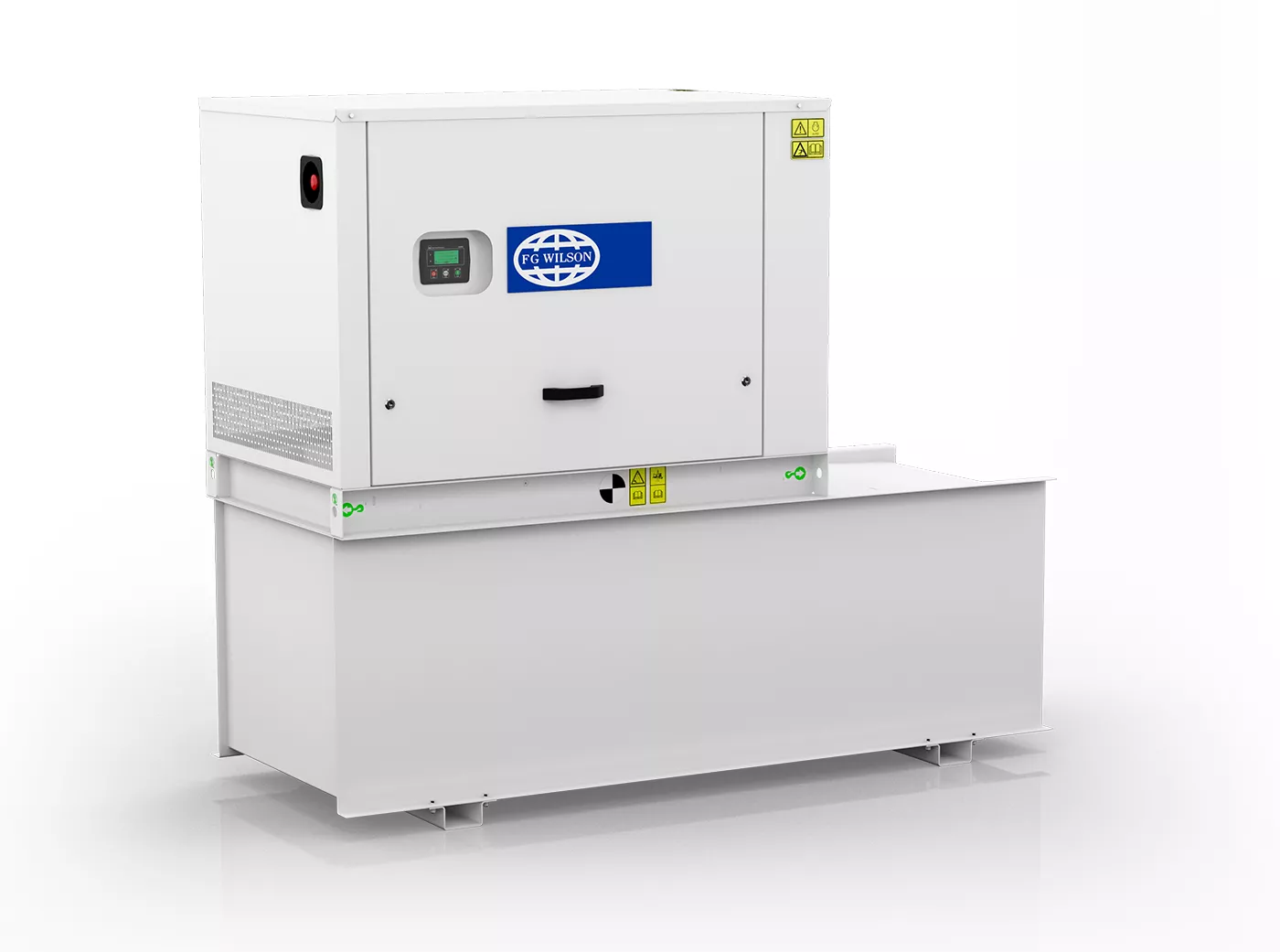

- 8 Hour, 600L, 1000L, 2000L fuel tanks
- Dual wall fuel tanks
- Upgrade to Standard Set for "CE" Certification
- EEC Declaration of Conformity
- Narrow, Wide or Skid Base
- Sound attenuated, steel or galvanised enclosure
- Dual wall fuel tanks

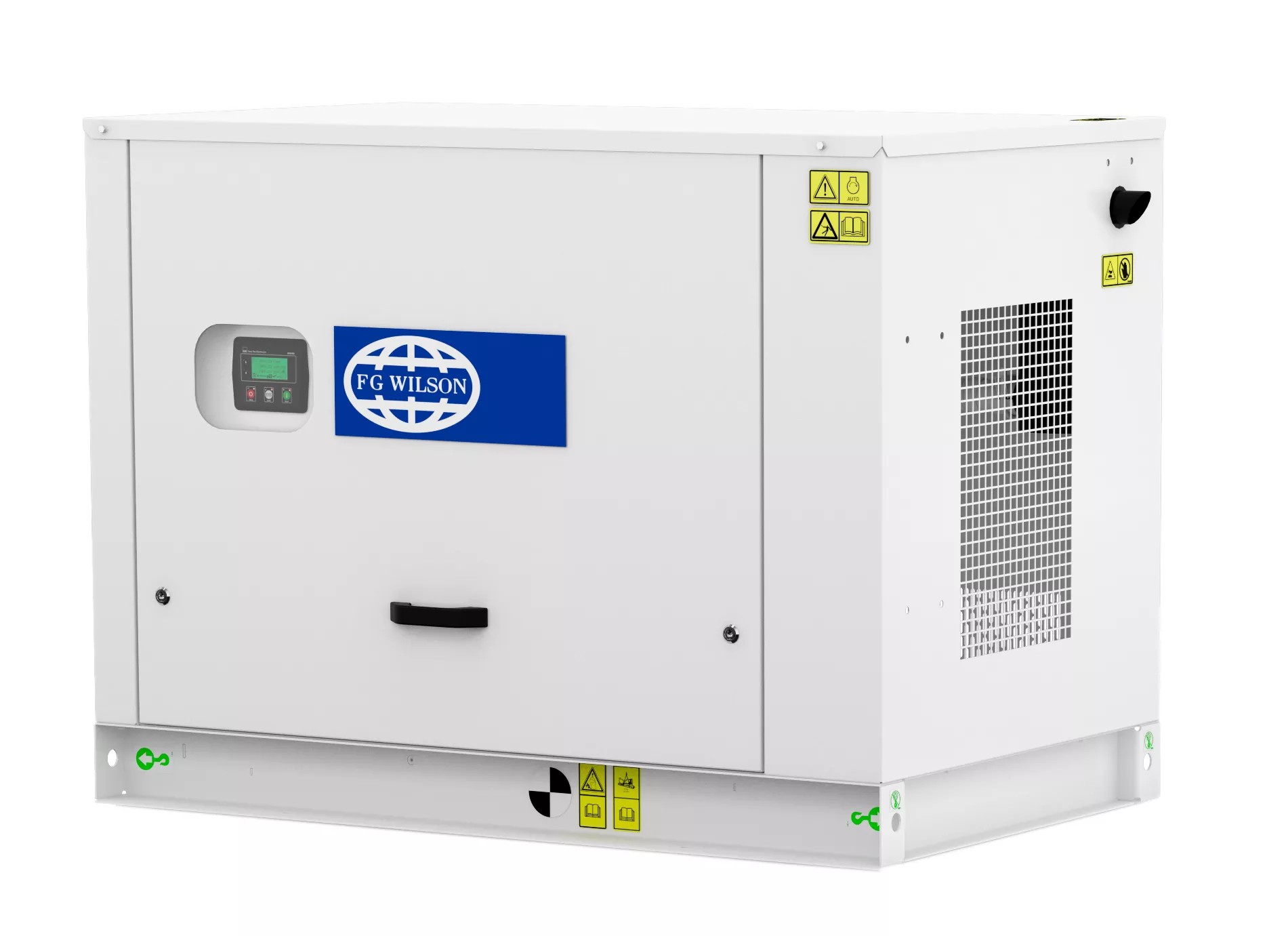

Enclosure
- Compliance to European Community Directive 2000/14/EC
- Super sound attenuation for residential areas
- Totally enclosed exhaust silencing system
- Robust and highly corrosion resistant construction
