Rental Range PRO20-4

New Used Rental

Request A Price Find Dealer

Key Specs

Minimum Rating: 20 kVA / 16 kW; 20 kVA / 16 kW

Maximum Rating: 20 kVA / 16 kW; 20 kVA / 16 kW

Emissions/Fuel Strategy: EUV Emissions Compliant; EUV Emissions Compliant

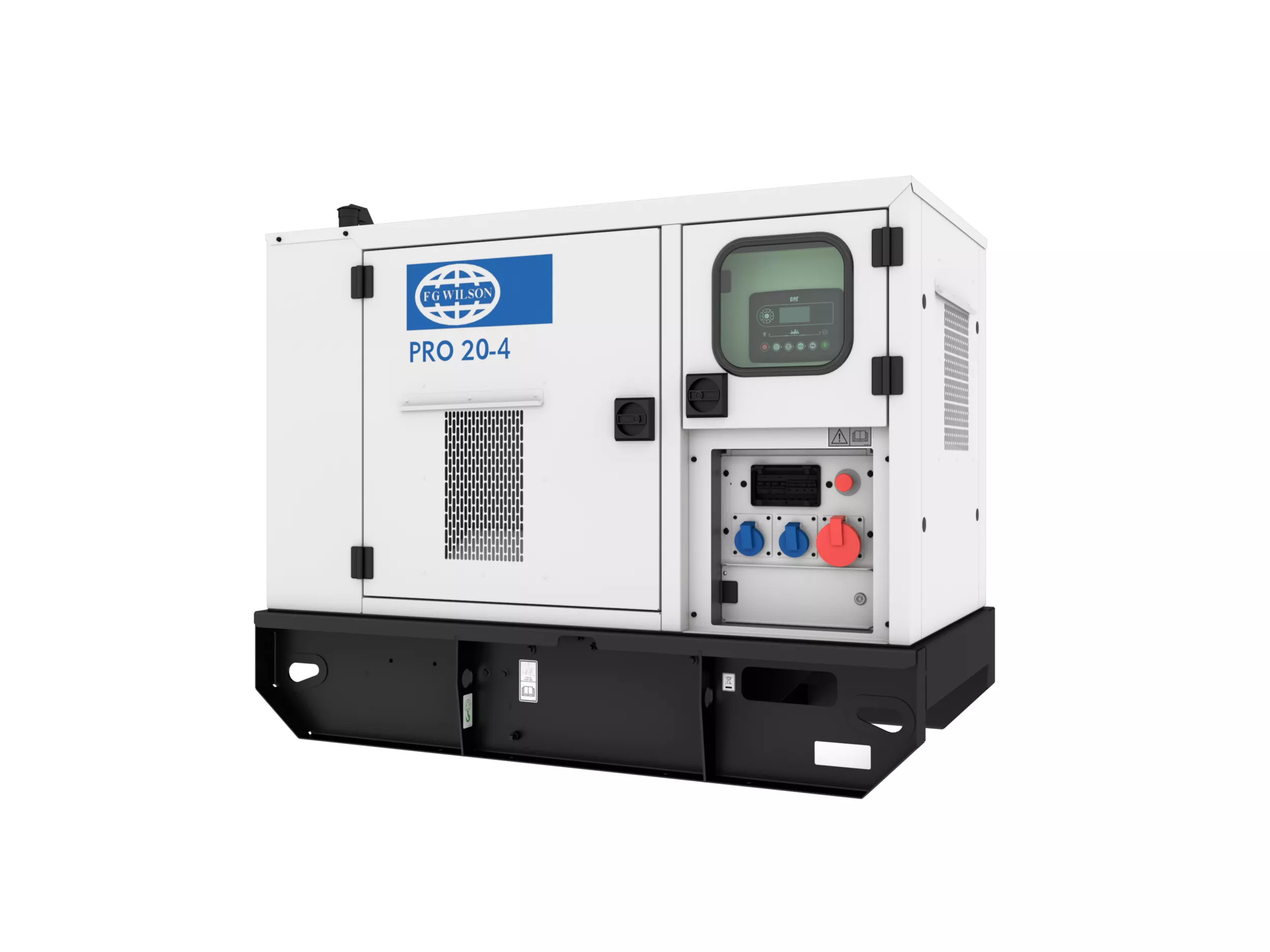

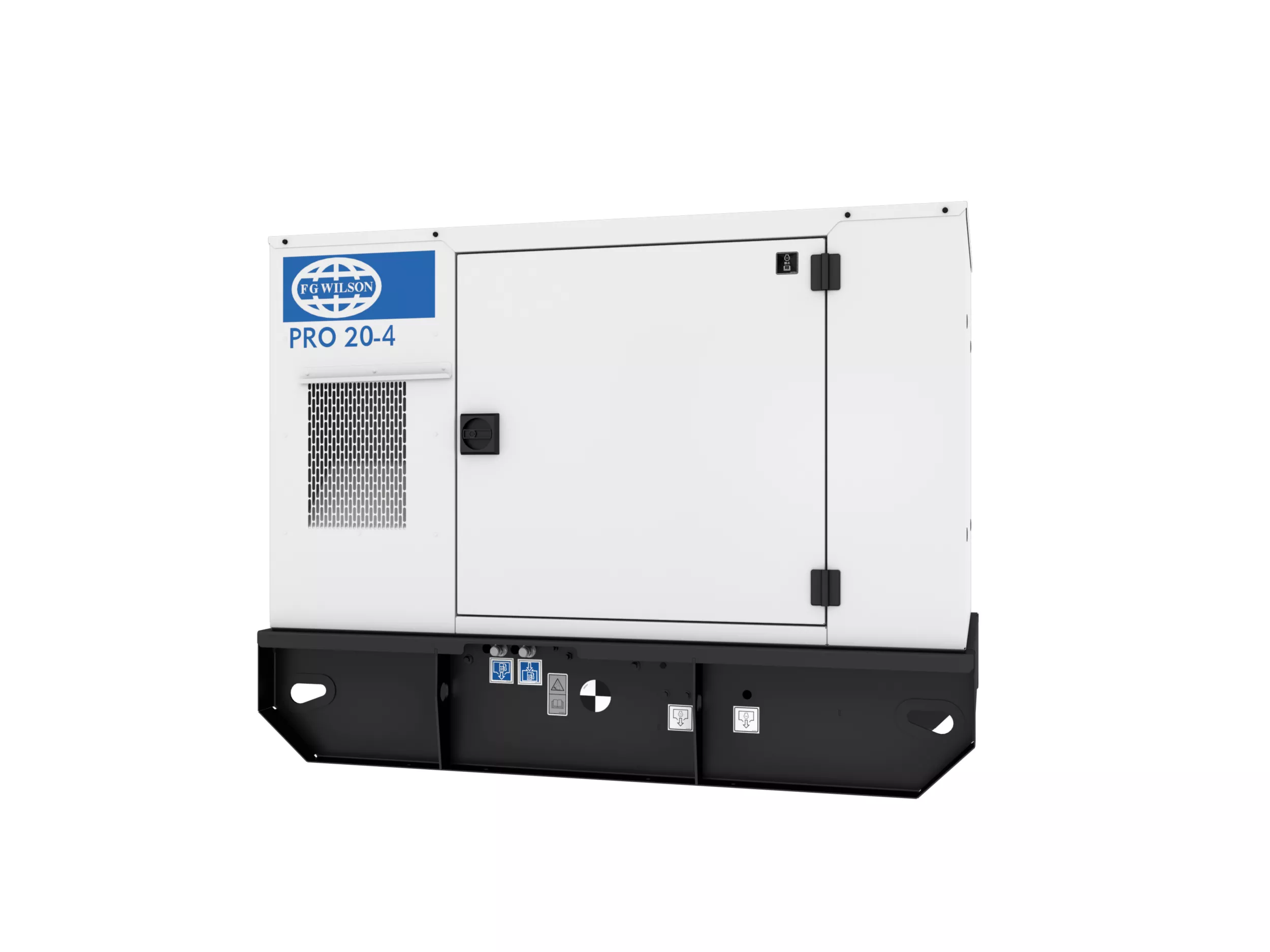

PRO20-4
Change model

Overview

PRO Rental

The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Extremely robust, the galvanised sound attenuated enclosures provide excellent sound attenuation whilst being able to withstand the harshest on-site conditions.

Benefits

Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Compliance with EU Stage V Emissions

Our EU Stage V PRO models now ensure you are compliant with the new emissions standards required for generators in a mobile application

Features At A Glance

Displaying 1-6 of 6

The PRO Range

With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world. FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs.

FG Wilson Diesel Engine

The Perkins 400 Series, the 404J gives you a complete power solution that is EU Stage V compliant.

Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

DeepSea DSE6320

The DSE6320 is a feature packed Auto Mains (Utility) Failure Control Module designed to control single diesel generator set applications.
Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC.

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

FG Wilson manufactures product in the following locations: Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

The Perkins 400 Series, the 404J gives you a complete power solution that is EU Stage V compliant.

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Specifications Standard Equipment Optional Equipment

Product Specifications for PRO20-4

Generator Set Specifications

Minimum Rating	20 kVA / 16 kW 20 kVA / 16 kW
Maximum Rating	20 kVA / 16 kW 20 kVA / 16 kW
Emissions/Fuel Strategy	EUV Emissions Compliant EUV Emissions Compliant
50 Hz Prime	20 kVA / 16 kW 20 kVA / 16 kW
60 Hz Prime	- kVA / - kW - kVA / - kW
Frequency	50 Hz 50 Hz
Speed	1500 RPM 1500 RPM
Voltage	220-415 Volts 220-415 Volts

Engine Specifications

Engine Model	404J-22G 404J-22G
Bore	84 mm 84 mm
Stroke	100 mm 100 mm
Governor Type	Mechanical Mechanical
Displacement	2.2 2.2
Compression Ratio	23:1 23:1

PRO20-4 Standard Equipment

Engine

Air Cleaner

Lube oil drain valve

Engine filled with lubrication oil

High Coolant Temperature Shutdown

Low Oil Pressure Shutdown

Cooling

Cooling package mounted radiator with vertical air discharge - 43 Deg C high ambient capability

Pusher fan with guards

Coolant drain line with internal brass ball control valve with pipe extension

Low coolant level shutdown

50% coolant antifreeze with corrosion inhibitor

Exhaust

Integrated spark arresting silencer with flexible connectors

Fuel

518 L double wall fuel tank, 25.4 hr runtime @ 75% prime rating
