Key Specs

Minimum Rating: 240 kVA / 300 kW; 240 kVA / 300 kW

Maximum Rating: 275 kVA / 344 kW; 275 kVA / 344 kW

Emissions/Fuel Strategy: Fuel optimised; Fuel optimised

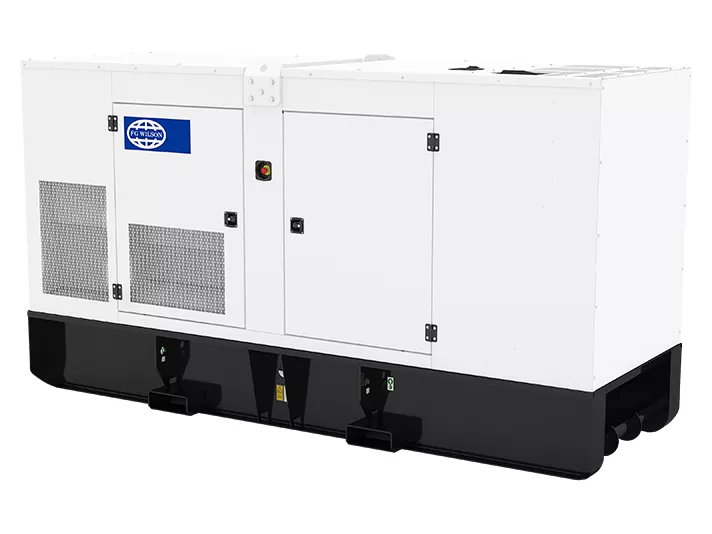

PRO300-1
Change model

Overview

PRO Rental

PRO300-1 - The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality

Benefits

Worldwide Power 50 / 60 Hz Switchable

Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.

Economy & Efficiency Viscous Clutch Fan Drive

Improved efficiency as the fan operates only when required and at the appropriate speed reducing parasitic loads and fuel consumption with reduced fan noise. Improved temperature control helps extend the life of the engine.

Efficient Operation from -4 C to 43 C Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Features At A Glance

Displaying 1-6 of 6

The PRO Range

With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world. FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs.

FG Wilson Diesel Engine

Perkins Diesel Engine

Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

DeepSea 7320

The DSE7320 is a feature packed Auto Mains (Utility) Failure Control Module designed to control single diesel generator set applications.Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC.

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

FG Wilson manufactures product in the following locations: • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Perkins Diesel Engine

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Specifications Standard Equipment Optional Equipment

Product Specifications for PRO300-1

Generator Set Specifications

Minimum Rating	240 kVA / 300 kW 240 kVA / 300 kW
Maximum Rating	275 kVA / 344 kW 275 kVA / 344 kW
Emissions/Fuel Strategy	Fuel optimised Fuel optimised
50 Hz Prime	240 kVA / 300 kW 240 kVA / 300 kW
60 Hz Prime	275 kVA / 344 kW 275 kVA / 344 kW
Frequency	50 / 60 Hz Switchable 50 / 60 Hz Switchable
Speed	1500 or 1800 RPM 1500 or 1800 RPM
Voltage	127-480 Volts 127-480 Volts

Engine Specifications

Engine Model	1506A-E88TAG4 1506A-E88TAG4
Bore	112 mm (4.4 in) 112 mm (4.4 in)
Stroke	149 mm (5.9 in) 149 mm (5.9 in)
Governor Type	Electronic Electronic
Displacement	8.8l 8.8l
Compression Ratio	16.1:1 16.1:1

PRO300-1 Standard Equipment

Engine

Air Cleaner

Lube oil drain valve

Engine filled with lubrication oil

High Coolant Temperature Shutdown

Low Oil Pressure Shutdown

Cooling

Cooling package mounted radiator with 50ºC high ambient capability

Variable speed pusher fan with guards

Coolant Drain Valve

Low coolant level shutdown.

50% coolant antifreeze with corrosion inhibitor

Exhaust

Integrated spark arresting silencer with flexible connectors, in separate compartment

Fuel

593 L single wall fuel tank, 11.3 hr runtime @ 75% prime rating, internal fuel fill

Engine mounted primary fuel filter (10micron) with integral water separator and water in Fuel sensor

Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.
