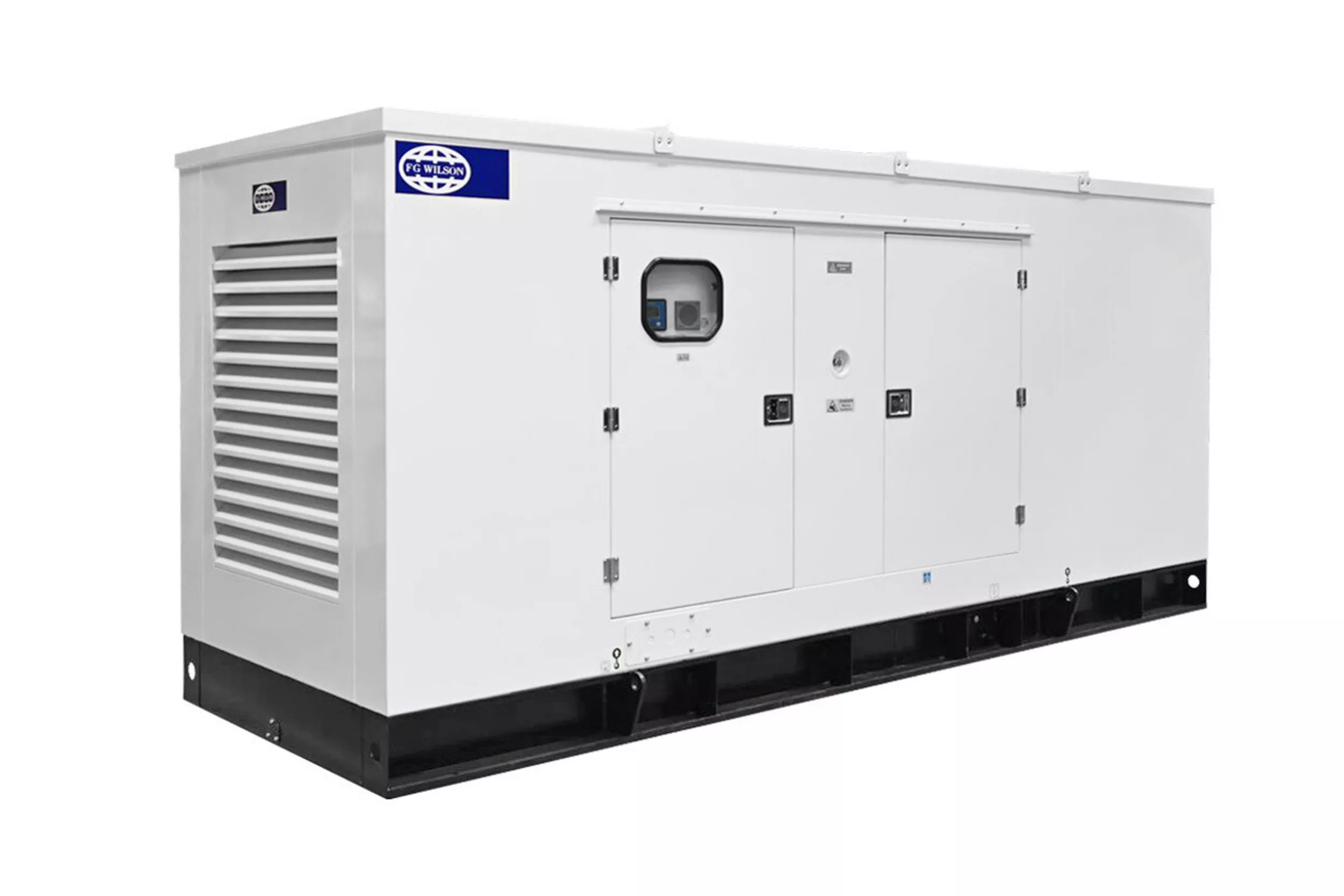

India Range FB250-4A
Key Specs
- 50 Hz Prime Rating
- 250 kVA
- 250 kVA
- Frequency
- 50 Hz
- 50 Hz
- Emissions/Fuel Strategy
- CPCB IV+ Certified
- CPCB IV+ Certified
Features At A Glance
World Wide Product Support
FG Wilson manufactures product in the following locations: Brazil - China - India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Single-Source Supplier
Fully prototype tested with certified torsional vibration analysis available
Product Specifications for FB250-4A
Generator Set Specifications
| 50 Hz Prime Rating | 250 kVA 250 kVA |
| Frequency | 50 Hz 50 Hz |
| Emissions/Fuel Strategy | CPCB IV+ Certified CPCB IV+ Certified |
| Minimum Rating | 250 kVA 250 kVA |
| Maximum Rating | 250 kVA 250 kVA |
| Voltage | 415/240 Volts 415/240 Volts |
| Speed | 1500 RPM 1500 RPM |
Engine Specifications
| Engine Model | A6G4DE250 A6G4DE250 |
| Governor Type | Electronic A0 Electronic A0 |
| Stroke | 135 mm 135 mm |
| Bore | 112 mm 112 mm |
| Displacement | 7.98 7.98 |
| Compression Ratio | 17.5:1 17.5:1 |
FB250-4A Standard Equipment
Air Inlet
- Air Cleaner
Cooling
- Cooling system filled with coolant mix
- Radiator and Cooling Fan
Exhaust
- Exhaust stub pipe & gasket
Fuel
- 480L fuel tank
Alternator
- Leroy Somer
- 415V, 50Hz (1500 rpm, 4 pole, Star formation, Brushless, IP 23, Class H/H insulation, AVR controlled, Voltage regulation +/-1%, and has good motor starting capability and ability to withstand good thyristor loading, with necessary short circuit and overload protection, B20 footmounting with IC01 cooling
Mounting
- Anti-vibration mounts
- Base, formed steel with single wall fuel tank
Power
- 400A circuit breaker
General
- Generating set is load tested and all protective devices and control functions are simulated and checked
