Key Specs

Minimum Rating: 220 kVA / 275 kW; 220 kVA / 275 kW

Maximum Rating: 250 kVA / 312.5 kW; 250 kVA / 312.5 kW

Emissions/Fuel Strategy: EU3a Emissions Compliant; EU3a Emissions Compliant

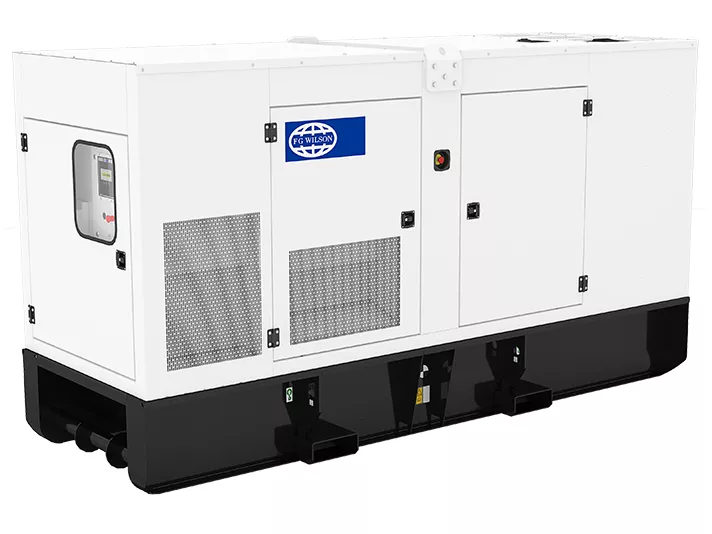

PRO275-2
Change model

Overview

PRO Rental

PRO275-2 - The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality

Benefits

Worldwide Power 50 / 60 Hz Switchable

Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.

Economy & Efficiency Viscous Clutch Fan Drive

Improved efficiency as the fan operates only when required and at the appropriate speed reducing parasitic loads and fuel consumption with reduced fan noise. Improved temperature control helps extend the life of the engine.

Efficient Operation from -4 C to 43 C Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Features At A Glance

Displaying 1-6 of 6

The PRO Range

With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world. FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs.

FG Wilson Diesel Engine

Perkins Diesel Engine

Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

PowerWizard 2.1+

The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Perkins Diesel Engine

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

Fully prototype tested with certified torsional vibration analysis available

Specifications Standard Equipment Optional Equipment

Product Specifications for PRO275-2

Generator Set Specifications

Minimum Rating	220 kVA / 275 kW 220 kVA / 275 kW
Maximum Rating	250 kVA / 312.5 kW 250 kVA / 312.5 kW
Emissions/Fuel Strategy	EU3a Emissions Compliant EU3a Emissions Compliant
50 Hz Prime	220 kVA / 275 kW 220 kVA / 275 kW
60 Hz Prime	250 kVA / 312.5 kW 250 kVA / 312.5 kW
Frequency	50 / 60 Hz Switchable 50 / 60 Hz Switchable
Speed	1500 or 1800 RPM 1500 or 1800 RPM
Voltage	127-480 Volts 127-480 Volts

Engine Specifications

Engine Model	1506D-E88TAG4 1506D-E88TAG4
Bore	112 mm (4.4 in) 112 mm (4.4 in)
Stroke	149 mm (5.9 in) 149 mm (5.9 in)
Governor Type	Electronic Electronic
Displacement	8.8l 8.8l
Compression Ratio	16.1:1 16.1:1

PRO275-2 Standard Equipment

Engine

Perkins 1506D heavy duty diesel engine

Four-stroke diesel engine combines consistent performance and excellent fuel economy with minimum weight

EUIIIa emissions compliant

Cooling

Cooling package mounted radiator with 50ºC high ambient capability

Variable speed pusher fan with guards

Coolant drain line with internal brass ball control valve piped to base-frame

Low coolant level shutdown.

50% coolant antifreeze with corrosion inhibitor

Exhaust

Integrated spark arresting silencer with flexible connectors, in separate compartment

Fuel

717 L single wall fuel tank, 13.5 hr runtime @ 75% prime rating, internal fuel fill

Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.
