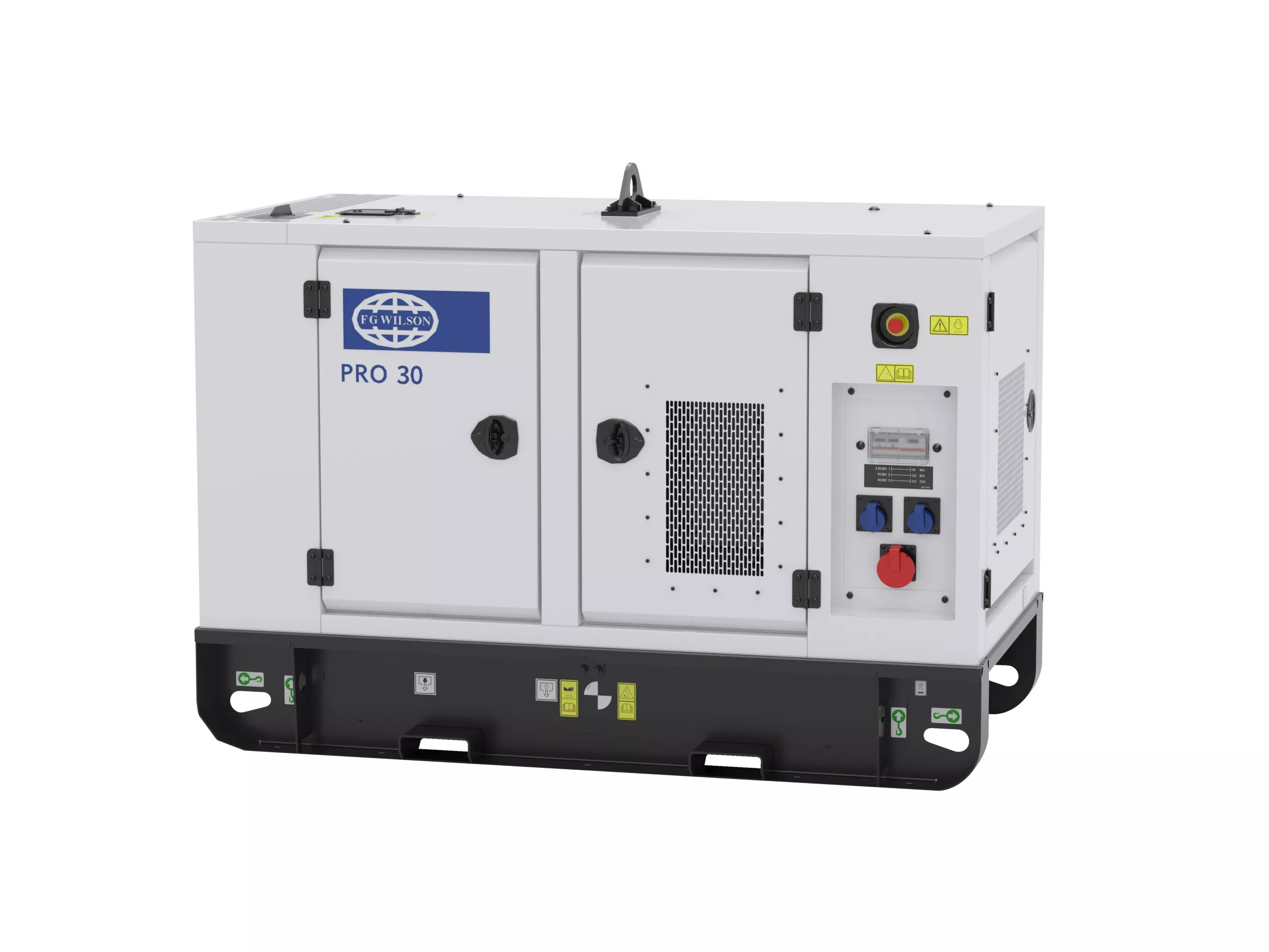

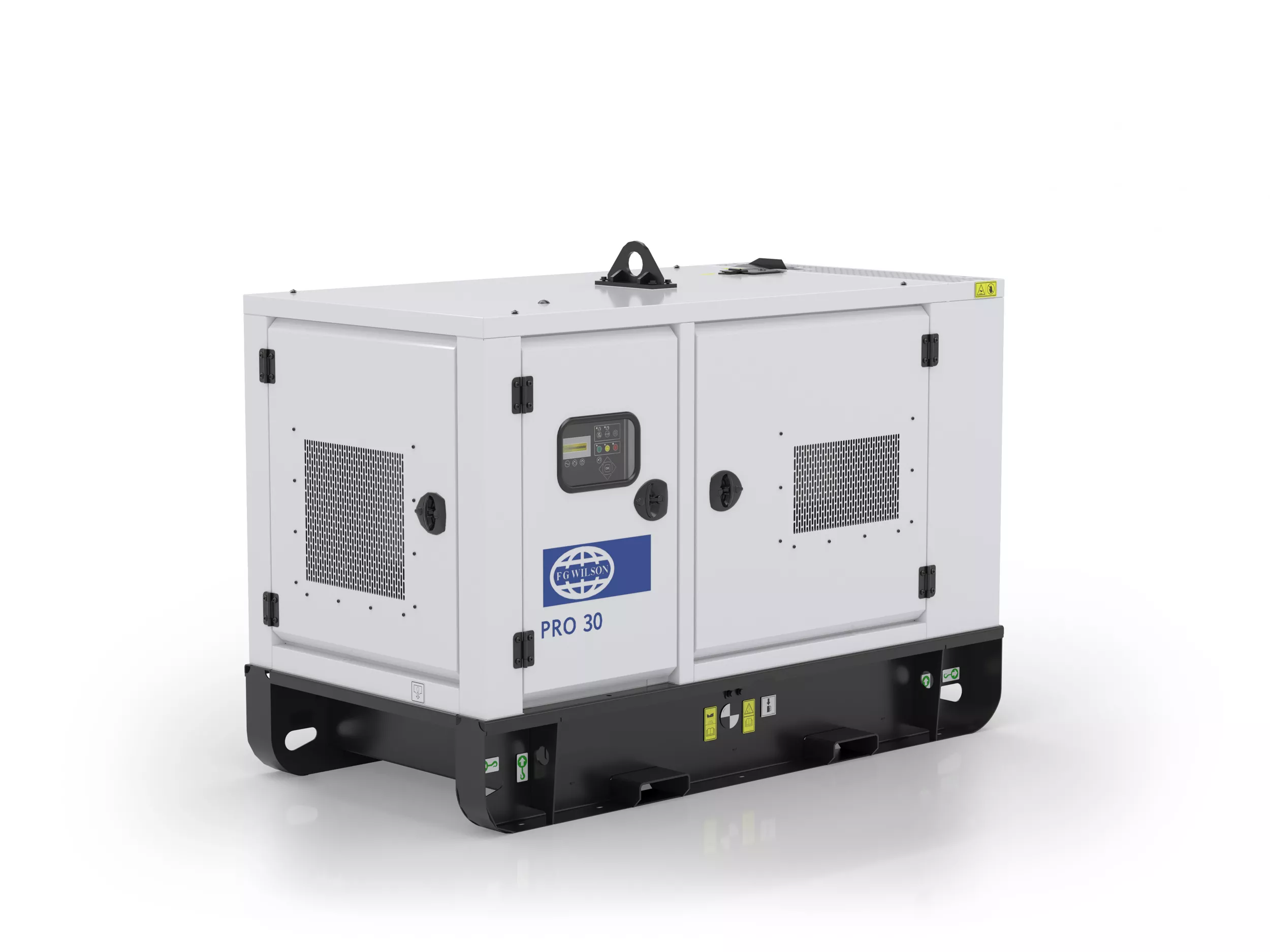

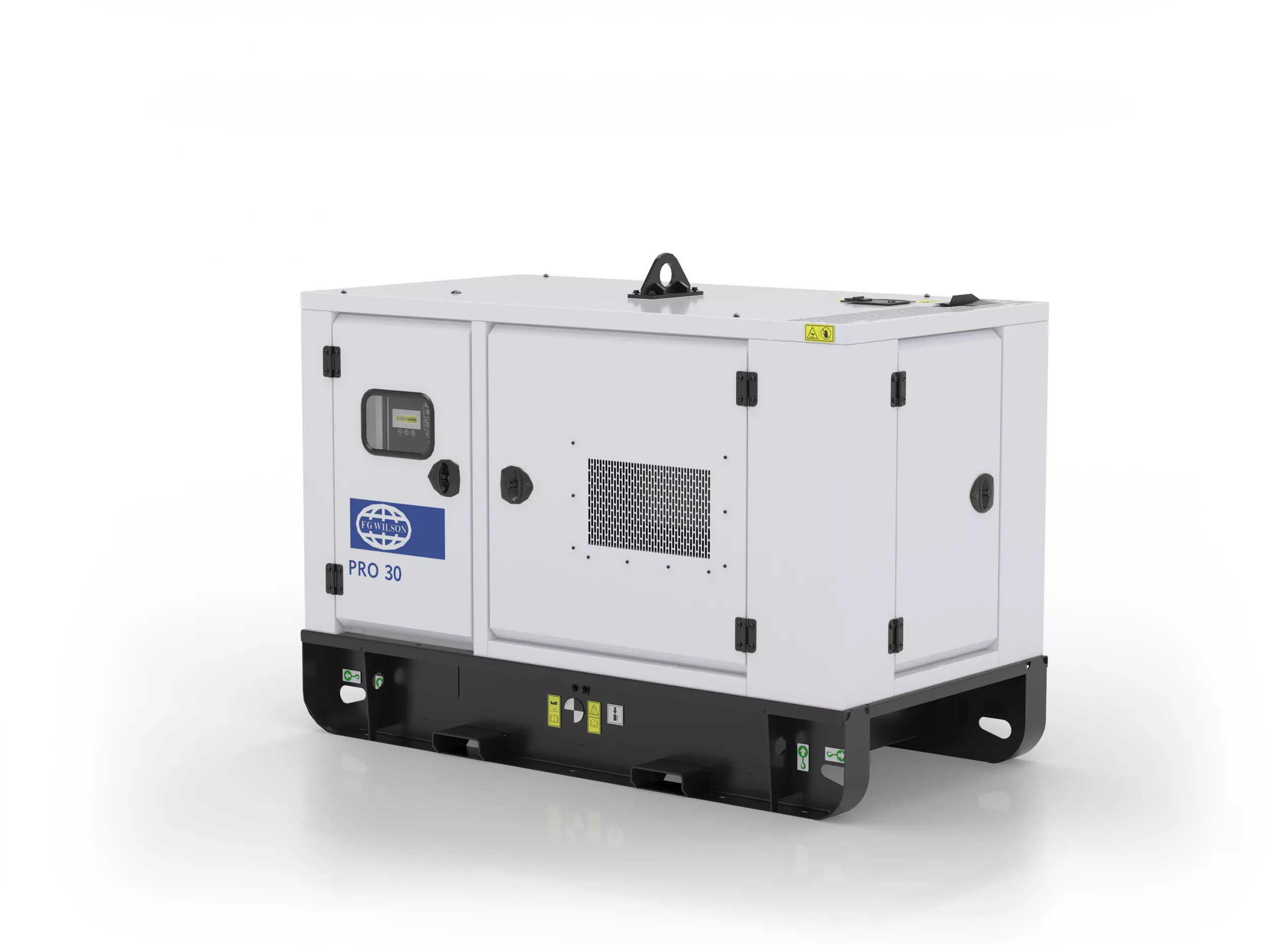

Rental Range PRO30-1
Key Specs
- Minimum Rating
- 30kVA / 24 kW
- 30kVA / 24 kW
- Maximum Rating
- 35.8 kVA / 28.6 kW
- 35.8 kVA / 28.6 kW
- Emissions/Fuel Strategy
- Fuel optimised
- Fuel optimised
Benefits
Worldwide Power 50 / 60 Hz Switchable
Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.
Testing we can Stand by Peace of mind
All noise and ambient testing completed in our state of the art testing facilities with test reports which we stand by to prove it
Efficient Operation from -4 C to 43 C Operation in all elements
Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications
Features At A Glance
Displaying 1-6 of 6
The PRO Range
With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world.
FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs.
FG Wilson Diesel Engine
Perkins Diesel Engine
Alternator
Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.
PowerWizard 2.1+
The FG Wilson PowerWizard range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our PowerWizard range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.
Testing & Validation
Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support
FG Wilson manufactures product in the following locations: Brazil • China and India with headquarters in Northern Ireland. FG Wilson operates through a Global Dealer Network.
Product Specifications for PRO30-1
Generator Set Specifications
| Minimum Rating | 30kVA / 24 kW 30kVA / 24 kW |
| Maximum Rating | 35.8 kVA / 28.6 kW 35.8 kVA / 28.6 kW |
| Emissions/Fuel Strategy | Fuel optimised Fuel optimised |
| 50 Hz Prime | 30kVA / 24 kW 30kVA / 24 kW |
| 60 Hz Prime | 35.8 kVA / 28.6 kW 35.8 kVA / 28.6 kW |
| Frequency | 50 / 60 Hz Switchable 50 / 60 Hz Switchable |
| Speed | 1500 or 1800 RPM 1500 or 1800 RPM |
| Voltage | 127-480 Volts 127-480 Volts |
Engine Specifications
| Engine Model | 1103A-33G1 1103A-33G1 |
| Bore | 105 mm 105 mm |
| Stroke | 127 mm 127 mm |
| Governor Type | Electronic Governor, Mechanical Actuator Electronic Governor, Mechanical Actuator |
| Displacement | 3.3L 3.3L |
| Compression Ratio | 19.25:1 19.25:1 |
PRO30-1 Standard Equipment
Engine
- Air Cleaner
- Lube oil drain valve
- Engine filled with lubrication oil
- High Coolant Temperature Shutdown
- Low Oil Pressure Shutdown
Cooling
- Cooling package mounted radiator with high ambient capability
- Pusher fan with guards
- Coolant drain line with internal brass ball control valve piped to base-frame
- Low coolant level shutdown.
- 50% coolant antifreeze with corrosion inhibitor
Exhaust
- Integrated spark arresting silencer with flexible connectors, in separate compartment
Fuel
- Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.
- 162 L double wall fuel tank, 24 hr runtime @ 75% prime rating
Alternator
- Leroy Somer
- SHUNT Excitation
- IP23 Protection
Control Panel
- PowerWizard 2.1+
Mounting
- Generator set soft mounted using captive vibration mounts
- Heavy duty steel base frame contains integral double wall fuel tank
- Provides 110% spill containment of all engine fluids
- Forklift pockets and heavy duty drag bar with skid plates
PRO30-1 Optional Equipment
Exhaust
- Industrial, Residential, Critical Silencers
Alternator
- Permanent Magnet Generator (PMG)
- Anti-condensation heater 110 or 230 VAC
Starting/Charging
- 12V battery charger
- UL/CSA listed 120 V, 20 Amp battery charger, shock mounted and enclosed in dust proof housing
General
- CE socket box with integrated MCB and RCBO protection
- Clipsal socket box with integrated MCB and RCBO protection
- Coolant heater 110 or 230 VAC
- CE labelling (also available for BSFC)
- Lube oil sump pump
