P910P1/P1000E1 50Hz | 910 kVA to 1000 kVA Diesel Generator | Perkins Engine

Large Range >800 kVA P1000-1M / P1000-1

Key Specs

Minimum Rating
910 kVA / 728 kW
910 kVA / 728 kW
Maximum Rating
1000 kVA / 800 kW
1000 kVA / 800 kW
Emissions/Fuel Strategy
Fuel Optimised
Fuel Optimised

Overview

730 - 2500 kVA Range

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Features At A Glance

Displaying 1-6 of 6

Our Large Product Range

Our Large Product Range

Our Large Product Range of generator set models is available from 800 - 2500 kVA. These generator sets are proven in the field and trusted to provide reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals and large retail stores etc. Available with a 50oC package option, to ensure efficient operation in high ambient temperatures, this range can be customised with bespoke enclosures, cooling systems and specialised control systems through our Custom Power Solution team to suit any need.

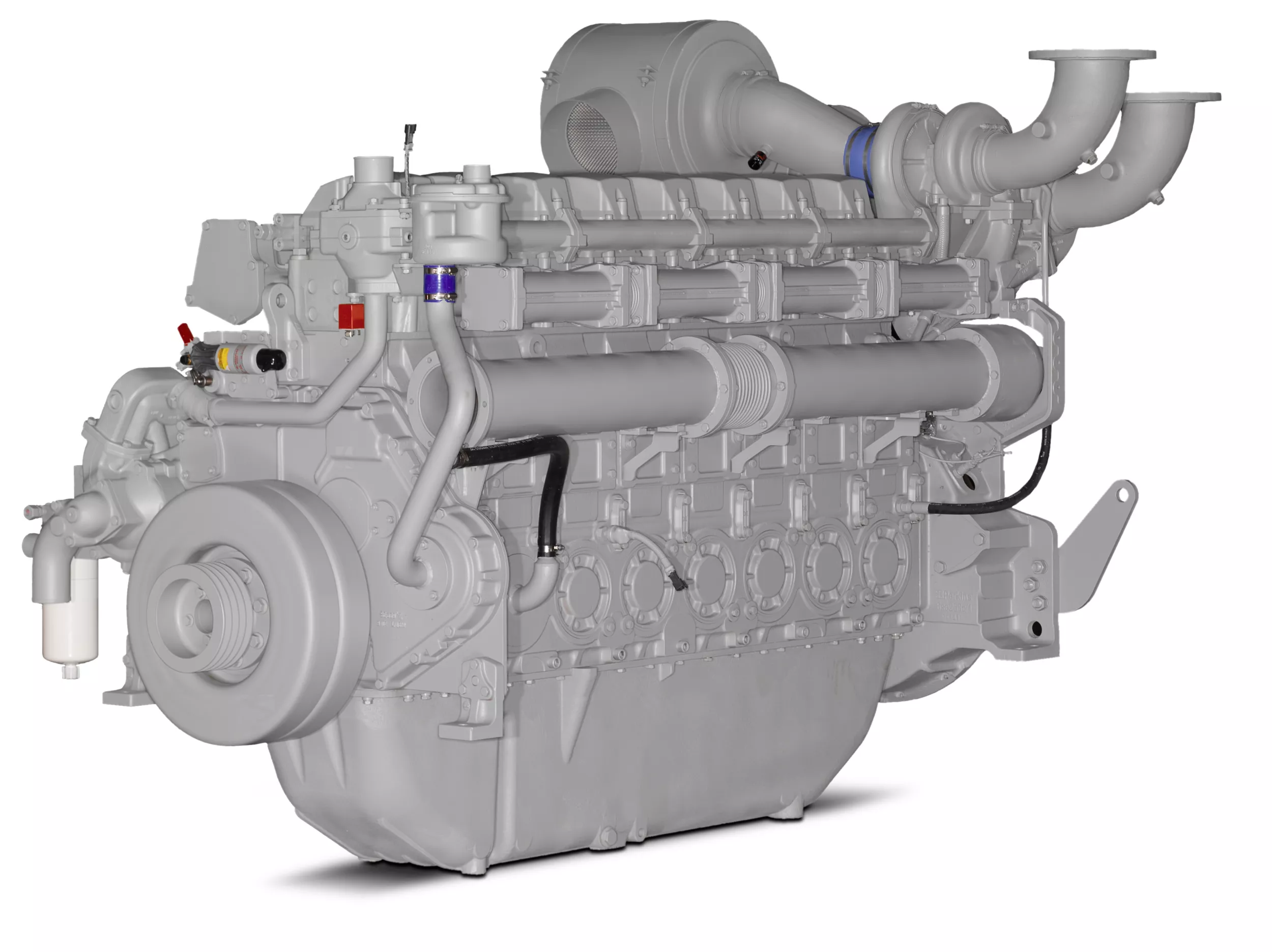

Industry Leading Perkins Diesel Engine

Industry Leading Perkins Diesel Engine

The 8 cylinder Perkins 4008 range gives you the versatility you need in today's power generation market. This engine has proven reliability in prime and standby installations in all of the key sectors, such as manufacturing facilities, hospitals, and data centres. The 4008 engines have exceptional power-to-weight ratios and compact designs, making them simple to transport and install.
World Class Alternator

World Class Alternator

Supported by the FG Wilson alternator, known worldwide for providing industry leading power generation and solutions, offering longlife products with low maintenance
DSE7410

Control Panel

DSE7410

The DSE7410 allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters. Deep Sea control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED's using universally recognised symbols, eliminating the need for complex instructions or language settings.
Testing & Validation

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support

World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Specifications Standard Equipment Optional Equipment

Product Specifications for P1000-1M / P1000-1

Download Print
Minimum Rating 910 kVA / 728 kW 910 kVA / 728 kW
Maximum Rating 1000 kVA / 800 kW 1000 kVA / 800 kW
Emissions/Fuel Strategy Fuel Optimised Fuel Optimised
50 Hz Prime 730 kVA / 584 kW 730 kVA / 584 kW
50 Hz Standby 1000 kVA / 800 kW 1000 kVA / 800 kW
Frequency 50 Hz 50 Hz
Speed 1500 RPM 1500 RPM
Voltage 220-415 Volts 220-415 Volts
Engine Model Perkins® 4008TAG1A Perkins® 4008TAG1A
Bore 160 mm (6.3 in) 160 mm (6.3 in)
Stroke 190 mm (7.5 in) 190 mm (7.5 in)
Governor Type Electronic Electronic
Displacement 30.6l (1864.9 cu. in) 30.6l (1864.9 cu. in)
Compression Ratio 13.6:1 13.6:1

P1000-1M / P1000-1 Standard Equipment

Print

Engine

  • Air Cleaner
  • Engine filled with lubrication oil
  • Low Coolant Temperature Shutdown
  • Perkins 4000 Series 8 cylinder engine
  • Electronic governor
  • Engine mounted fuel/water separator
  • Lube drain valve

Cooling

  • Package mounted radiator
  • Coolant Drain Valve
  • Engine mounted battery charging alternator
  • Cooling System filled with Coolant mix
  • Charge air cooled

Fuel

  • Fuel Cooler

Alternator

  • FG Wilson
  • Auxillary Winding Excitation
  • IP23 Protection

Control Panel

  • Deep Sea 7410

Mounting

  • Rigid steel base frame
  • Lifting points on base frame

P1000-1M / P1000-1 Optional Equipment

Print

Exhaust

  • Industrial, Residential, Critical Silencers
  • Catalytic converters
  • Heat Exhangers
  • Special spark arrestor silencers/certification

Alternator

  • Quadrature Droop Kit
  • Anti-Condensation Heater and Panel Circuitry
  • Increased alternator ingress protection
  • HV alternators

Control Panels

  • ComAp MRS16, IG200
  • Deep Sea 7420
  • Remote monitoring
  • Increased Control Panel Ingress Protection
  • Stand alone ATI transfer panel

Starting/Charging

  • Lead Acid battery
  • Dual and air starting systems

General

  • Upgrade to Standard Set for "CE" Certification
  • Sound attenuated enclosures
  • Spring, Seismic anti-vibration mounts
  • Customer witness test
  • Remote cooling
  • Coolant heater
  • 4-Pole circuit breaker
  • Motorised circuit breaker
  • LV and HV switchgear

Fuel

  • Fuel transfer systems
  • Integral metal fuel tank
