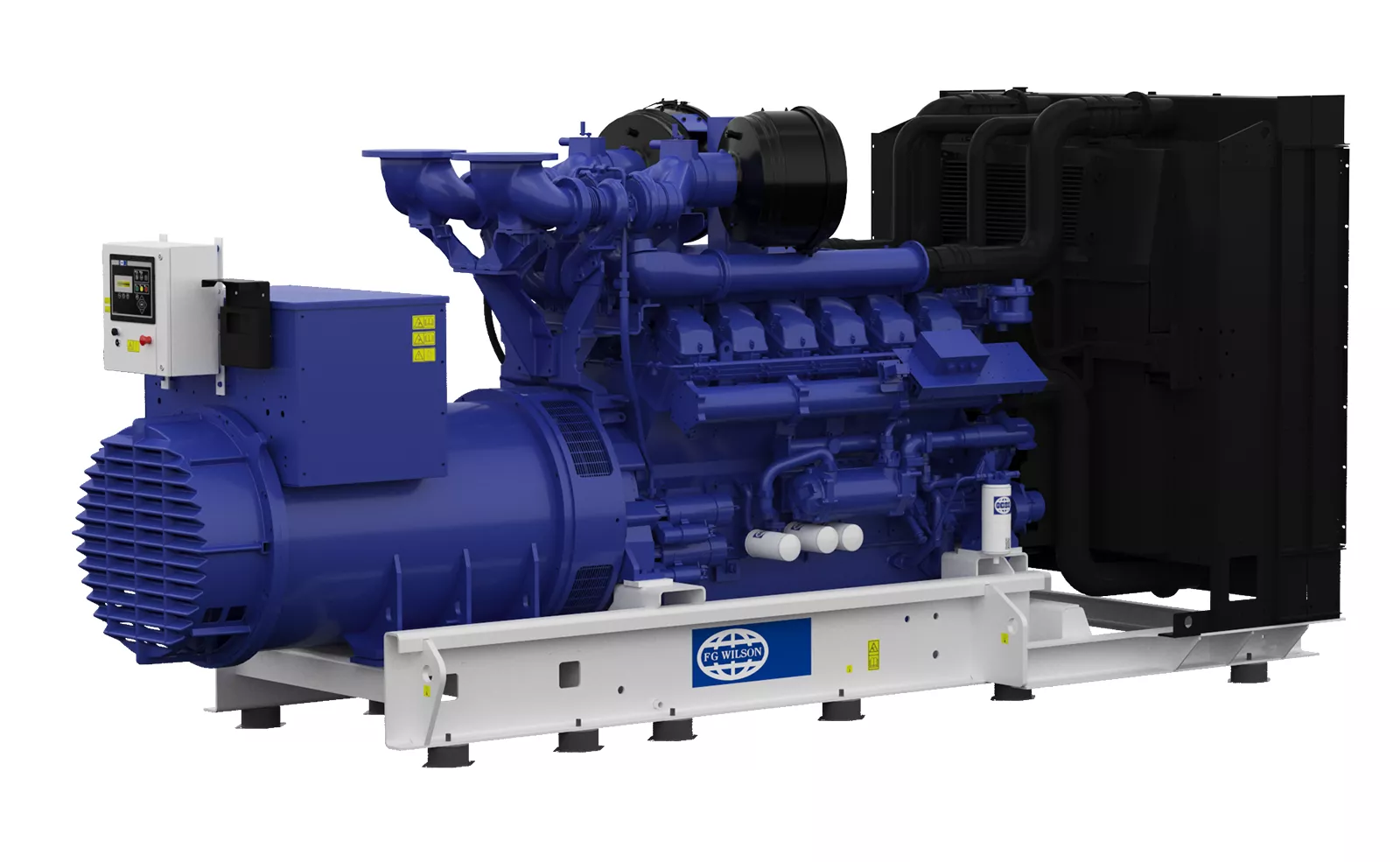

P1500-1 | 1350 kVA to 1500 kVA Diesel Generator | Perkins Engine

Large Range >800 kVA P1500-1M / P1500-1

Key Specs

Minimum Rating
1350 kVA / 1080 kW
1350 kVA / 1080 kW
Maximum Rating
1500 kVA / 1200 kW
1500 kVA / 1200 kW
Emissions/Fuel Strategy
Fuel Optimised
Fuel Optimised

Overview

730 - 2500 kVA Range

Proven in the field, this range of generator sets are capable of providing reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals, large retail stores, and the financial sector. A 50oC package option is available to ensure efficient operation in high ambient temperatures. Custom-built weatherproof and acoustic enclosures can be tailored to suit any application. Providing personnel access and separate components for cooling, they make generator set installation and maintenance as quick and easy as possible.

Features At A Glance

Displaying 1-6 of 6

Our Large Product Range

Our Large Product Range

Our Large Product Range of generator set models is available from 800 - 2500 kVA. These generator sets are proven in the field and trusted to provide reliable power for critical applications including: mini power stations, data centres, large factories, airports, hospitals and large retail stores etc. Available with a 50oC package option, to ensure efficient operation in high ambient temperatures, this range can be customised with bespoke enclosures, cooling systems and specialised control systems through our Custom Power Solution team to suit any need.
Industry Leading Perkins Diesel Engine

Industry Leading Perkins Diesel Engine

The 12 cylinder Perkins 4012 range gives you the versatility you need in today's power generation market. This engine has proven reliability in prime and standby installations in all of the key sectors, such as manufacturing facilities, hospitals, and data centres. The 4012 engines have exceptional power-to-weight ratios and compact designs, making them simple to transport and install.
World Class Alternator

World Class Alternator

Supported by the FG Wilson alternator, known worldwide for providing industry leading power generation and solutions, offering longlife products with low maintenance.
DSE7410

Deep Sea 7410

DSE7410

The DSE7410 allows you to monitor and control your generator set with ease, providing important diagnostic information whilst ensuring your unit operates within safe parameters. Deep Sea control panels, provide simple, intuitive menu navigation and control of your generator set operations. Key information is displayed via the LCD screen and LED's using universally recognised symbols, eliminating the need for complex instructions or language settings.
Testing & Validation

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support

World Wide Product Support

FG Wilson manufactures product in the following locations: Brazil • China • India • With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Specifications Standard Equipment Optional Equipment

Product Specifications for P1500-1M / P1500-1

Download Print
Minimum Rating 1350 kVA / 1080 kW 1350 kVA / 1080 kW
Maximum Rating 1500 kVA / 1200 kW 1500 kVA / 1200 kW
Emissions/Fuel Strategy Fuel Optimised Fuel Optimised
50 Hz Prime 1350 kVA / 1080 kW 1350 kVA / 1080 kW
50 Hz Standby 1500 kVA / 1200 kW 1500 kVA / 1200 kW
Frequency 50 Hz 50 Hz
Speed 1500 RPM 1500 RPM
Voltage 220-415 Volts 220-415 Volts
Engine Model Perkins® 4012-46TWG3A Perkins® 4012-46TWG3A
Bore 160 mm (6.3 in) 160 mm (6.3 in)
Stroke 190 mm (7.5 in) 190 mm (7.5 in)
Governor Type Electronic Electronic
Displacement 45.8l (2797.5 cu. in) 45.8l (2797.5 cu. in)
Compression Ratio 13.0:1 13.0:1

P1500-1M / P1500-1 Standard Equipment

Print

Engine

  • Air Cleaner
  • Engine filled with lubrication oil
  • Low Coolant Temperature Shutdown
  • Perkins 4000, Series 6, 8, 12 and 16 cylinder engine range
  • Electronic governor
  • Engine mounted fuel/water separator
  • Lube drain valve (910 kVA to 2500 kVA)

Cooling

  • Package mounted radiator
  • Coolant Drain Valve
  • Engine mounted battery charging alternator
  • Cooling System filled with Coolant mix
  • Charge air cooled (excluding TWGs)

Exhaust

  • Industrial silencer

Fuel

  • Fuel Cooler

Alternator

  • FG Wilson
  • AREP Excitation
  • IP23 Protection

Control Panel

  • Deep Sea 7410

Mounting

  • Base, Formed Steel with Single wall Fuel Tank
  • Lifting points on base frame

P1500-1M / P1500-1 Optional Equipment

Print

Exhaust

  • Industrial, Residential, Critical Silencers
  • Catalytic converters
  • Heat Exhangers
  • Special spark arrestor silencers/certification

Alternator

  • Quadrature Droop Kit (AR6)
  • Anti-Condensation Heater and Panel Circuitry (AH1)
  • Increased alternator ingress protection
  • HV alternators

Control Panels

  • ComAp MRS16, IG200
  • Deep Sea 7420
  • Customer tailored PLC System
  • Remote monitoring
  • Increased Control Panel Ingress Protection
  • Stand alone ATI transfer panel

Starting/Charging

  • Lead Acid battery (Dry)
  • Dual and air starting systems

General

  • Upgrade to Standard Set for "CE" Certification
  • Sound attenuated enclosures
  • Spring, Seismic anti-vibration mounts
  • Customer witness test
  • Remote cooling
  • 50 degree C radiator and package
  • Coolant heater
  • 4-Pole circuit breaker
  • Motorised circuit breaker
  • LV and HV switchgear

Fuel

  • Bi-fuel options (TWG and TRG only)
  • Fuel transfer systems (730 - 900 kVA)
  • Integral metal fuel tank (730 - 900 kVA)

See how P1500-1M / P1500-1 compares against frequently compared products.

Diesel Generators
Selected
P1500-1M / P1500-1
P1500-1M / P1500-1
Minimum Rating
1350 kVA / 1080 kW
1350 kVA / 1080 kW
Maximum Rating
1500 kVA / 1200 kW
1500 kVA / 1200 kW
Emissions/Fuel Strategy
Fuel Optimised
Fuel Optimised
Diesel Generators
P1250-1M / P1250-1
P1250-1M / P1250-1
Minimum Rating
1125 kVA / 900 kW
1125 kVA / 900 kW
Maximum Rating
1250 kVA / 1000 kW
1250 kVA / 1000 kW
Emissions/Fuel Strategy
Fuel Optimised
Fuel Optimised
View Details
Diesel Generators
P1650-1M / P1650-1
P1650-1M / P1650-1
Minimum Rating
1500 kVA / 1200 kW
1500 kVA / 1200 kW
Maximum Rating
1650 kVA / 1320 kW
1650 kVA / 1320 kW
Emissions/Fuel Strategy
Fuel Optimised
Fuel Optimised
View Details
