Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.
Improved efficiency as the fan operates only when required and at the appropriate speed reducing parasitic loads and fuel consumption with reduced fan noise. Improved temperature control helps extend the life of the engine.
Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications
Key Specs

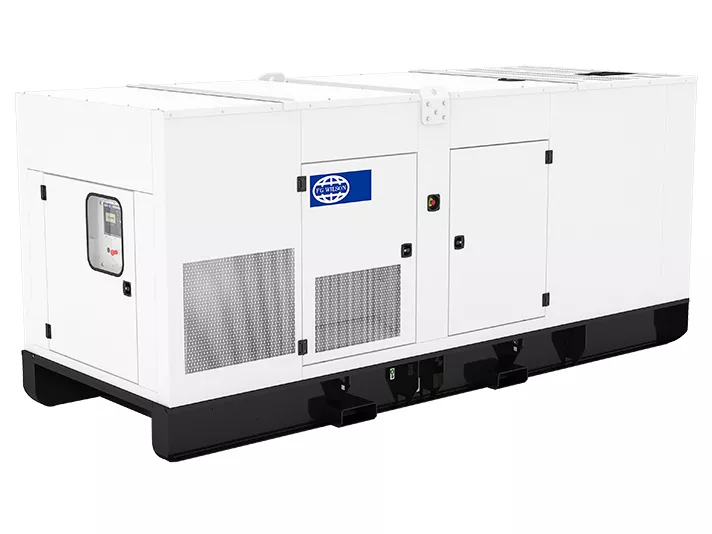

PRO500-2 - The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality
Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.
Improved efficiency as the fan operates only when required and at the appropriate speed reducing parasitic loads and fuel consumption with reduced fan noise. Improved temperature control helps extend the life of the engine.
Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications
| Minimum Rating | 500 kVA / 400 kW 500 kVA / 400 kW |
| Maximum Rating | 525 kVA / 420 kW 525 kVA / 420 kW |
| Emissions/Fuel Strategy | EU3a Emissions Compliant EU3a Emissions Compliant |
| 50 Hz Prime | 500 kVA / 400 kW 500 kVA / 400 kW |
| 60 Hz Prime | 525 kVA / 420 kW 525 kVA / 420 kW |
| Frequency | 50 / 60 Hz Switchable 50 / 60 Hz Switchable |
| Speed | 1500 & 1800 RPM 1500 & 1800 RPM |
| Voltage | 127-480 Volts 127-480 Volts |
| Engine Model | 2506D-E15TAG2 2506D-E15TAG2 |
| Bore | 137 mm (5.4 in) 137 mm (5.4 in) |
| Stroke | 171 mm (6.7 in) 171 mm (6.7 in) |
| Governor Type | Electronic Electronic |
| Displacement | 15.2l 15.2l |
| Compression Ratio | 16.8:1 16.8:1 |
