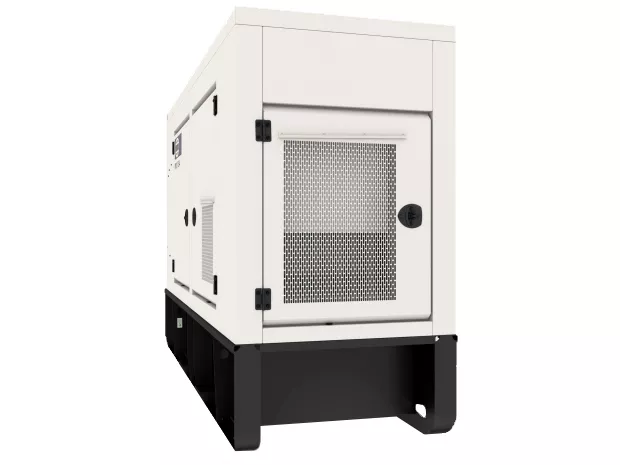

PRO115-4 EUV

Rental Range PRO115-4


Key Specs

Minimum Rating
115 kVA / 92 kW
115 kVA / 92 kW
Maximum Rating
120 kVA / 96 kW
120 kVA / 96 kW
Emissions/Fuel Strategy
EUV Emissions Compliant
EUV Emissions Compliant

Overview

PRO Rental

The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Extremely robust, the galvanised sound attenuated enclosures provide excellent sound attenuation whilst being able to withstand the harshest on-site conditions.

Benefits

Worldwide Power 50 / 60 Hz Switchable

Enhanced range now has the ability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.

Compliance with EU Stage V Peace of mind

Our EU Stage V PRO models now ensure you are compliant with the new emissions standards required for generators in a mobile application

Efficient Operation from -4 C to 43 C Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Features At A Glance

Displaying 1-6 of 6

The PRO Range

The PRO Range

With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world. FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs.
FG Wilson Diesel Engine

FG Wilson Diesel Engine

The high power density 6 cylinder Perkins 1200 Series, the 1204J gives you a complete power solution that is EU Stage V compliant.
Alternator

Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.
DeepSea DSE7320

DeepSea DSE7320

The DSE7320 is a feature packed Auto Mains (Utility) Failure Control Module designed to control single diesel generator set applications.
Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC.
Testing & Validation

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support

World Wide Product Support

FG Wilson manufactures product in the following locations: Brazil • China • India • USA With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Product Specifications for PRO115-4

Minimum Rating 115 kVA / 92 kW 115 kVA / 92 kW
Maximum Rating 120 kVA / 96 kW 120 kVA / 96 kW
Emissions/Fuel Strategy EUV Emissions Compliant EUV Emissions Compliant
50 Hz Prime 115 kVA / 92 kW 115 kVA / 92 kW
60 Hz Prime 120 kVA / 96 kW 120 kVA / 96 kW
Frequency 50 / 60 Hz Switchable 50 / 60 Hz Switchable
Speed 1500 / 1800 RPM 1500 / 1800 RPM
Voltage 127-480 Volts 127-480 Volts
Engine Model 1204J-E44TTAG2 1204J-E44TTAG2
Bore 105 mm (4.1 in) 105 mm (4.1 in)
Stroke 127 mm (5 in) 127 mm (5 in)
Governor Type Electronic ECM Controlled Electronic ECM Controlled
Displacement 4.4 L 4.4 L
Compression Ratio 18.23:1 18.23:1

PRO115-4 Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Cooling package mounted radiator with high ambient capability
  • Pusher fan with guards
  • Coolant drain line with internal brass ball control valve piped to base-frame
  • Low coolant level shutdown.
  • 50% coolant antifreeze with corrosion inhibitor

Exhaust

  • Integrated spark arresting silencer with flexible connectors

Fuel

  • 518 L double wall fuel tank, 25.4 hr runtime @ 75% prime rating

Alternator

  • Leroy Somer
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • DeepSea 7320

Mounting

  • Generator set soft mounted using captive vibration mounts
  • Heavy duty steel base frame contains integral double wall fuel tank
  • Provides 110% spill containment of all engine fluids
  • Forklift pockets

PRO115-4 Optional Equipment

Alternator

  • Permanent Magnet Generator (PMG)
  • Anti-condensation heater 110 or 230 VAC

Starting/Charging

  • 12V battery charger
  • UL/CSA listed 120 V, 20 Amp battery charger, shock mounted and enclosed in dust proof housing

General

  • CE socket box with integrated MCB and RCBO protection
  • Clipsal socket box with integrated MCB and RCBO protection
  • Coolant heater 110 or 230 VAC
  • CE labelling (also available for BSFC)
  • Lube oil sump pump
