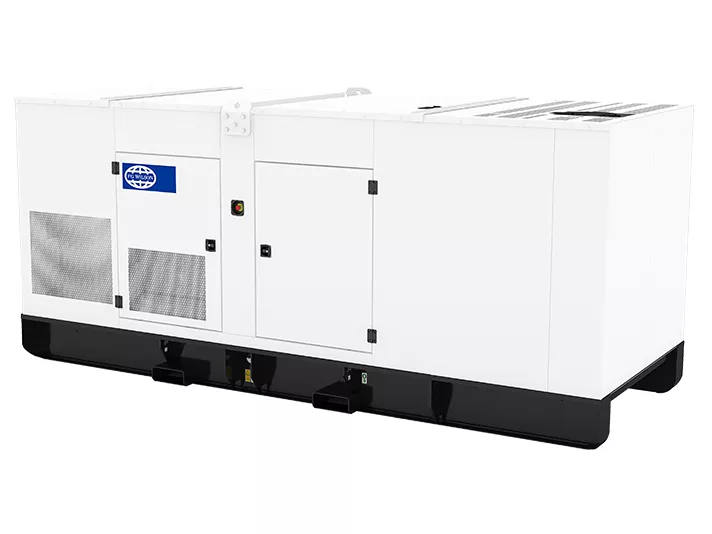

PRO500-1

Rental Range PRO500-1

Request A Price Find Dealer

Key Specs

Minimum Rating
500 kVA / 400 kW
500 kVA / 400 kW
Maximum Rating
525 kVA / 420 kW
525 kVA / 420 kW
Emissions/Fuel Strategy
Fuel optimised
Fuel optimised

Overview

PRO Rental

The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Extremely robust, the galvanised sound attenuated enclosures provide excellent sound attenuation whilst being able to withstand the harshest on-site conditions.

Benefits

Worldwide Power 50 / 60 Hz Switchable

Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.

Economy & Efficiency Viscous Clutch Fan Drive

Improved efficiency as the fan operates only when required and at the appropriate speed reducing parasitic loads and fuel consumption with reduced fan noise. Improved temperature control helps extend the life of the engine.

Efficient Operation from -4 C to 43 C Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Product Specifications for PRO500-1

Minimum Rating 500 kVA / 400 kW 500 kVA / 400 kW
Maximum Rating 525 kVA / 420 kW 525 kVA / 420 kW
Emissions/Fuel Strategy Fuel optimised Fuel optimised
50 Hz Prime 500 kVA / 400 kW 500 kVA / 400 kW
60 Hz Prime 525 kVA / 420 kW 525 kVA / 420 kW
Frequency 50 / 60 Hz Switchable 50 / 60 Hz Switchable
Speed 1500 / 1800 RPM 1500 / 1800 RPM
Voltage 127-480 Volts 127-480 Volts
Engine Model 2506A-E15TAG2 2506A-E15TAG2
Bore 137 mm (5.4 in) 137 mm (5.4 in)
Stroke 171 mm (6.7 in) 171 mm (6.7 in)
Governor Type Electronic Electronic
Displacement 15.2L 15.2L
Compression Ratio 16:01 16:01

PRO500-1 Standard Equipment

Engine

  • Air Cleaner
  • Lube oil drain valve
  • Engine filled with lubrication oil
  • High Coolant Temperature Shutdown
  • Low Oil Pressure Shutdown

Cooling

  • Cooling package mounted radiator with high ambient capability
  • Coolant Drain Valve
  • 50% coolant antifreeze with corrosion inhibitor
  • Pusher fan with guards

Exhaust

  • Integrated spark arresting silencer with flexible connectors, in separate compartment

Fuel

  • 784 L single wall fuel tank, 9 hr runtime @ 75% prime rating
  • Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.

Alternator

  • Leroy Somer
  • SHUNT Excitation
  • IP23 Protection

Control Panel

  • DeepSea 7320

Mounting

  • Generator set soft mounted using captive vibration mounts
  • Heavy duty steel base frame contains integral fuel tank
  • Forklift pockets and heavy duty drag bar with skid plates
  • Battery Tray and Cables

PRO500-1 Optional Equipment

Starting/Charging

  • 24V battery charger

General

  • CE labelling
  • 1000 Hour Service Interval
  • Anti-condensation heater 230 VAC
  • Coolant heater 230 VAC
  • Earth Leakage
  • Lube oil sump pump
  • Dual wall fuel tank

Control Panel

  • Synchronising control panel and motorised breakers

Alternator

  • Permanent Magnet Generator (PMG)

See how PRO500-1 compares against frequently compared products.
