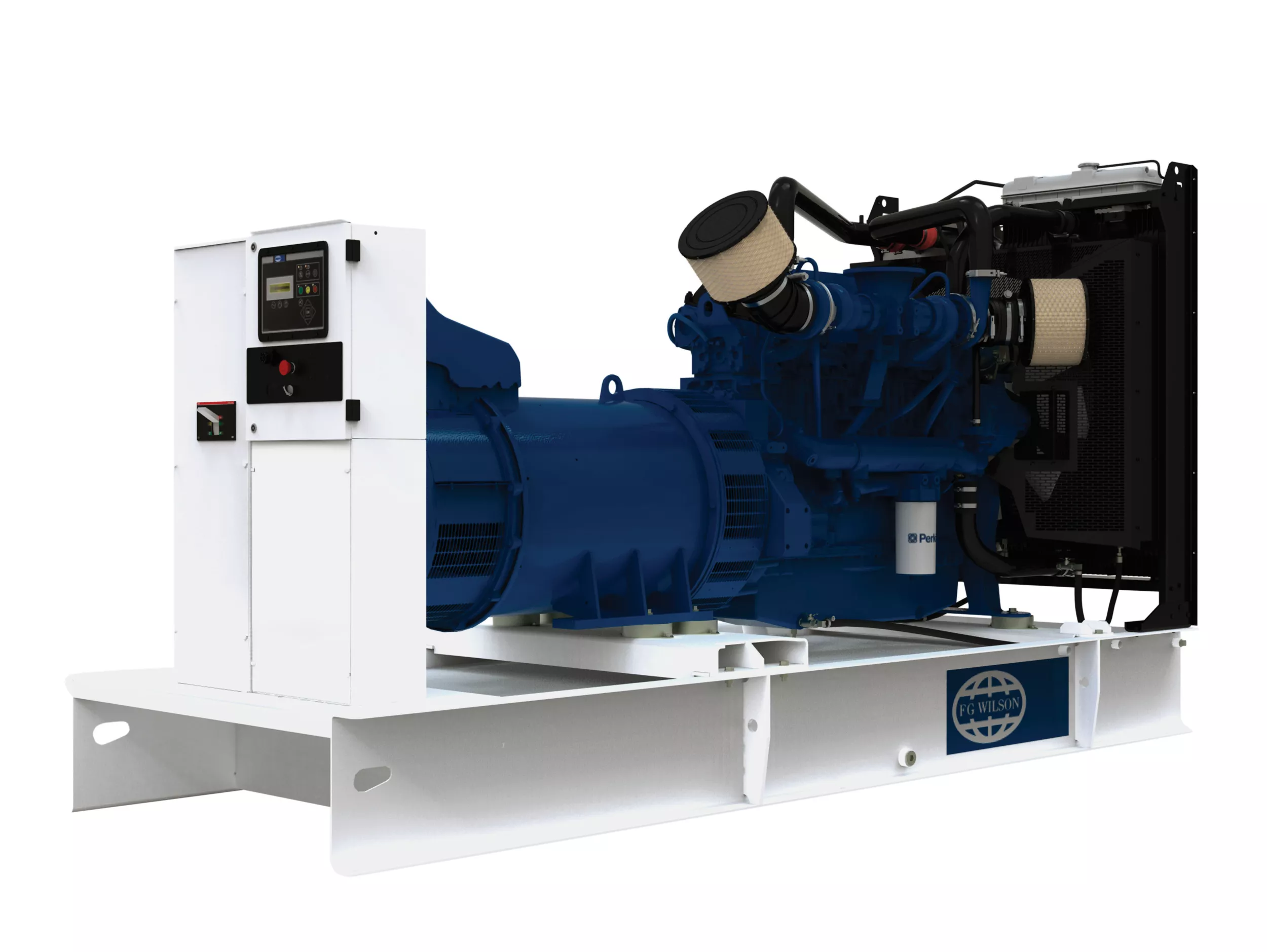

P938-1 | 850 kVA to 937.5 kVA Diesel Generator | Perkins Engine

Medium Range 225 – 938 kVA P938-1

Request A Price Find Dealer

Size A Generator

Build Your Own Generator

Key Specs

Minimum Rating: 850 kVA / 680 kW; 850 kVA / 680 kW

Maximum Rating: 938 kVA / 750 kW; 938 kVA / 750 kW

Emissions/Fuel Strategy: Fuel Optimised; Fuel Optimised

P938-1
Change model

Overview

350 - 938 kVA Range

The new 350 - 938 kVA industry leading power range is the result of a continued focus on performance, durability and serviceability combined with the most advanced production methods to deliver power you can trust.

Features At A Glance

Displaying 1-6 of 6

The Story

The 350 - 938 kVA range from FG Wilson is designed by our expert engineers to deliver power you can trust. With an enhanced choice of power nodes, this range is engineered for optimum performance in diverse applications. Expert Design� Trusted Power

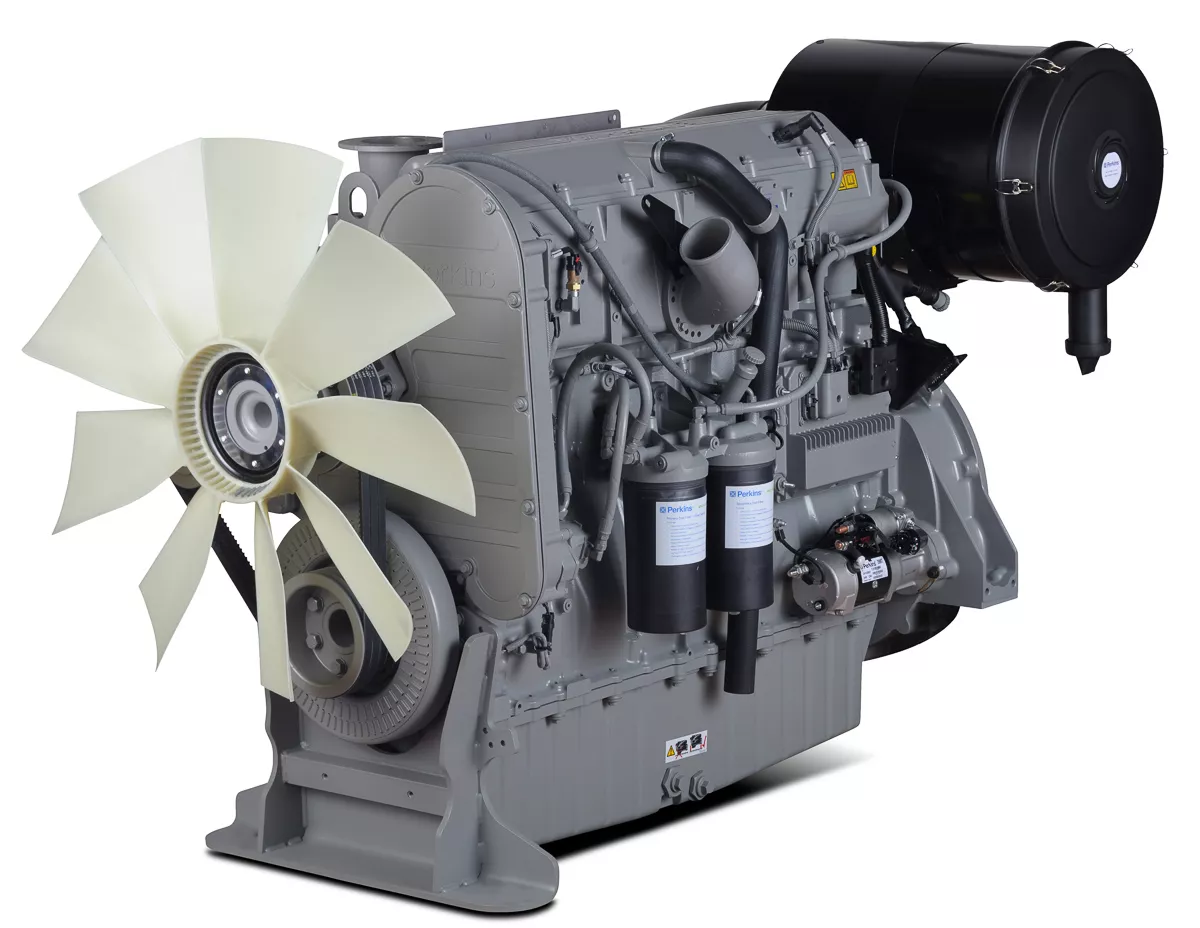

FG Wilson Diesel Engine

The Perkins 2000 Series offers excellent performance from the well-proven 6 cylinder 13, 15 & 18 litre in-line diesel engines. Developed from a proven heavy-duty industrial base, the engine offers superior performance and reliability. Its premium design ensures economic and durable operation, low emissions and advanced performance and reliability.

Alternator

Benefiting from a choice of FG Wilson branded and Leroy Somer alternators across the range offering the excellent performance and reliability you expect from FG Wilson.

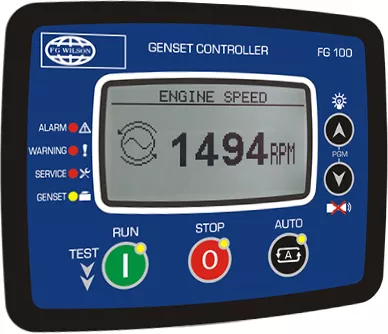

PowerWizard 1.1+

The FG Wilson FG100 range of digital control panels, combine straightforward menu navigation with advanced metering and protection technology. They are used in automatic mains failure applications in conjunction with transfer panels. Our FG100 range allows you to monitor and control your generator set with ease, whilst ensuring your unit operates within safe parameters and provides important diagnostic information when needed.

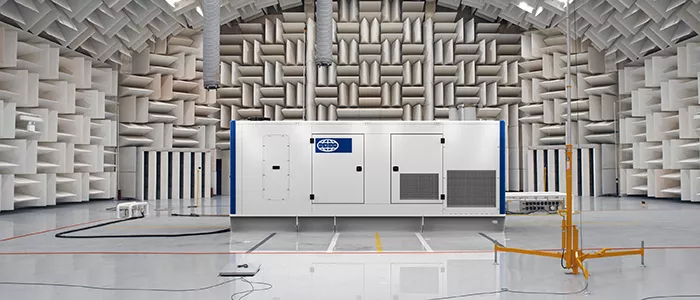

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Benefiting from a choice of FG Wilson branded and Leroy Somer alternators across the range offering the excellent performance and reliability you expect from FG Wilson.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Specifications Standard Equipment Optional Equipment

Product Specifications for P938-1

Generator Set Specifications

Minimum Rating	850 kVA / 680 kW 850 kVA / 680 kW
Maximum Rating	938 kVA / 750 kW 938 kVA / 750 kW
Emissions/Fuel Strategy	Fuel Optimised Fuel Optimised
60 Hz Prime	850 kVA / 680 kW 850 kVA / 680 kW
60 Hz Standby	938 kVA / 750 kW 938 kVA / 750 kW
Frequency	60 Hz 60 Hz
Speed	1800 RPM 1800 RPM
Voltage	127 - 480 Volts 127 - 480 Volts

Engine Specifications

Engine Model	Perkins® 2806A-E18TTAG7 Perkins® 2806A-E18TTAG7
Bore	145 mm (5.7 in) 145 mm (5.7 in)
Stroke	183.0mm (7.2 in) 183.0mm (7.2 in)
Governor Type	Electronic Electronic
Displacement	18.1l (1104.5 cu. in) 18.1l (1104.5 cu. in)
Compression Ratio	14.0:1 14.0:1

P938-1 Standard Equipment

Engine

Air Cleaner

Lube oil drain valve

Engine filled with lubrication oil

High Coolant Temperature Shutdown

Low Oil Pressure Shutdown

Engine mounted battery charging alternator

Cooling

Package mounted radiator

Radiator fan and charging alternator guards

Coolant Drain Valve

Cooling System filled with Coolant mix

Exhaust

Exhaust flange outlet

Exhaust bellows and gasket

Fuel

8 Hr Fuel Tank

BSP Fuel Sockets
