Key Specs

Minimum Rating: 150 kVA / 120 kW; 150 kVA / 120 kW

Maximum Rating: 172 kVA / 137 kW; 172 kVA / 137 kW

Emissions/Fuel Strategy: EU3a Emissions Compliant; EU3a Emissions Compliant

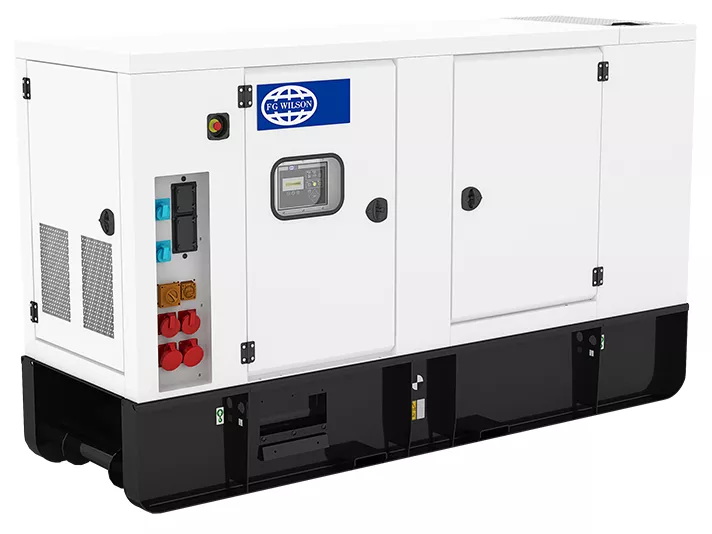

PRO150-1
Change model

Overview

PRO Rental

PRO150-1 - The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality

Benefits

Worldwide Power 50 / 60 Hz Switchable

Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.

Testing we can Stand by Peace of mind

All noise and ambient testing completed in our state of the art testing facilities with test reports which we stand by to prove it

Efficient Operation from -4 C to 43 C Operation in all elements

Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications

Features At A Glance

Displaying 1-6 of 6

The PRO Range

With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world. FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs.

FG Wilson Diesel Engine

Perkins Diesel Engine

Alternator

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

DeepSea DSE7320

The DSE7320 is a feature packed Auto Mains (Utility) Failure Control Module designed to control single diesel generator set applications.
Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC.

Testing & Validation

Fully prototype tested with certified torsional vibration analysis available

World Wide Product Support

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Perkins Diesel Engine

Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.

Fully prototype tested with certified torsional vibration analysis available

FG Wilson manufactures product in the following locations: Northern Ireland • Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.

Specifications Standard Equipment Optional Equipment

Product Specifications for PRO150-1

Generator Set Specifications

Minimum Rating	150 kVA / 120 kW 150 kVA / 120 kW
Maximum Rating	172 kVA / 137 kW 172 kVA / 137 kW
Emissions/Fuel Strategy	EU3a Emissions Compliant EU3a Emissions Compliant
50 Hz Prime	150 kVA / 120 kW 150 kVA / 120 kW
60 Hz Prime	172 kVA / 137 kW 172 kVA / 137 kW
Frequency	50 / 60 Hz Switchable 50 / 60 Hz Switchable
Speed	1500 or 1800 RPM 1500 or 1800 RPM
Voltage	127-480 Volts 127-480 Volts

Engine Specifications

Engine Model	1106A-70TAG2 1106A-70TAG2
Bore	105 mm (4.1 in) 105 mm (4.1 in)
Stroke	135 mm (5.3 in) 135 mm (5.3 in)
Governor Type	A4:E2 A4:E2
Displacement	7L 7L
Compression Ratio	18.2:1 18.2:1

PRO150-1 Standard Equipment

Engine

Air Cleaner

Lube oil drain valve

Engine filled with lubrication oil

High Coolant Temperature Shutdown

Low Oil Pressure Shutdown

Cooling

Package mounted radiator

Radiator & Cooling Fan

Coolant Drain Valve

Fan, Fan drive and battery charging Alternator drive fully guarded to meet EC Machinery Directive

Cooling System filled with Coolant mix

Exhaust

Exhaust flange outlet

Exhaust stub pipe and gasket

Fuel

590L double wall fuel tank, 24 hr runtime @ 75% prime rating, internal fuel fill

Fuel Fittings for Local and Remote Feed
