Overview
PRO Rental
PRO100-1 - The PRO Rental Range provides reliable power for today's world with a competitive offering that delivers everything you need. Providing unrivalled quality.
- place Find Dealer
- person Account
-
helpHelp Center
-
Guided Tour
Requires cookie settings to view content
- Contact Us
-
Guided Tour

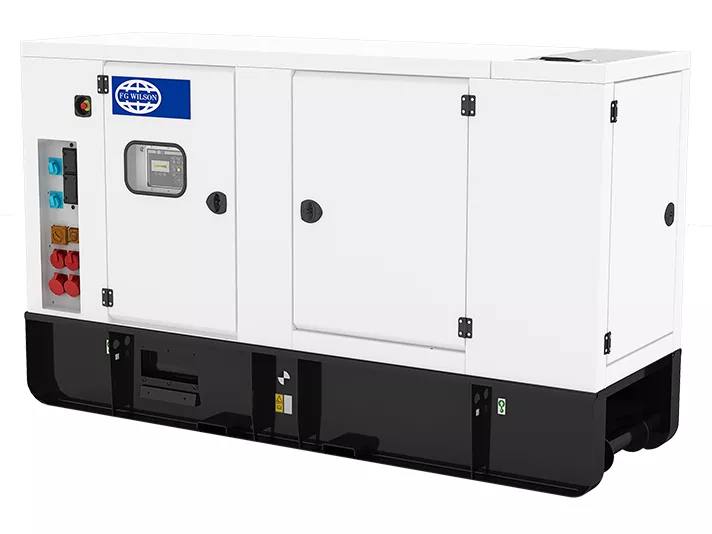

Rental Range PRO100-1
Key Specs
- Minimum Rating
- 100 kVA / 80 kW
- 100 kVA / 80 kW
- Maximum Rating
- 117 kVA / 93.6 kW
- 117 kVA / 93.6 kW
- Emissions/Fuel Strategy
- EU3a Emissions Compliant
- EU3a Emissions Compliant
Benefits
Worldwide Power 50 / 60 Hz Switchable
Enhanced range now has theability to switch between 50 & 60 Hz frequencies on all models. One range is designed to suit you, regardless of where you are in the world.
Testing we can Stand by Peace of mind
All noise and ambient testing completed in our state of the art testing facilities with test reports which we stand by to prove it
Efficient Operation from -4 C to 43 C Operation in all elements
Designed to operate in the harshest of environments from high ambience up to 43 C down to -5 C. With additional enhancements such as Coastal Ingress Protection (CIP) PRO units are suitable for a wide variety of rental applications
Features At A Glance
Displaying 1-6 of 6
The PRO Range
With over 50 years in the Power Generation business, FG Wilson has been a major global player providing rental power throughout the world.
FG Wilson has a flexible solution for every application through our dedicated Professional Rental Operator (PRO) range. The PRO range offers rental fleet owners product to meet a wide variety of applications. Our rental generator sets are fuel efficient, easy to operate and fully robust to meet the rigorous requirements of your temporary power needs.

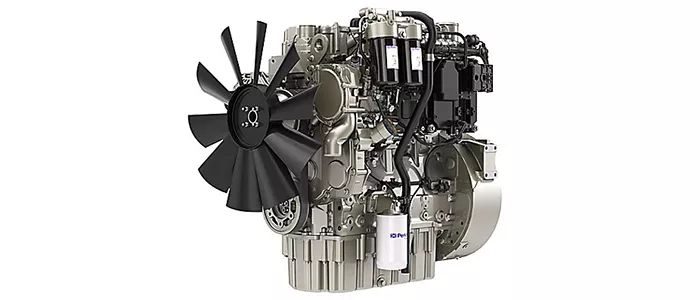

FG Wilson Diesel Engine
Perkins Diesel Engine
Alternator
Benefiting from a choice of leading alternators, the range incorporates the Leroy Somer alternator as standard across three phase models.
DeepSea DSE7320
The DSE7320 is a feature packed Auto Mains (Utility) Failure Control Module designed to control single diesel generator set applications.
Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC.
Monitoring an extensive number of engine parameters, the modules will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LEDs, remote PC.
Testing & Validation
Fully prototype tested with certified torsional vibration analysis available
World Wide Product Support
FG Wilson manufactures product in the following locations: Brazil • China • India With headquarters in Northern Ireland, FG Wilson operates through a Global Dealer Network.
Product Specifications for PRO100-1
Generator Set Specifications
| Minimum Rating | 100 kVA / 80 kW 100 kVA / 80 kW |
| Maximum Rating | 117 kVA / 93.6 kW 117 kVA / 93.6 kW |
| Emissions/Fuel Strategy | EU3a Emissions Compliant EU3a Emissions Compliant |
| 50 Hz Prime | 100 kVA / 80 kW 100 kVA / 80 kW |
| 60 Hz Prime | 117 kVA / 93.6 kW 117 kVA / 93.6 kW |
| Frequency | 50 / 60 Hz Switchable 50 / 60 Hz Switchable |
| Speed | 1500 or 1800 RPM 1500 or 1800 RPM |
| Voltage | 120-240 Volts 120-240 Volts |
Engine Specifications
| Engine Model | 1104A-44TAG2 1104A-44TAG2 |
| Bore | 105 mm (4.1 in) 105 mm (4.1 in) |
| Stroke | 127 mm (5 in) 127 mm (5 in) |
| Governor Type | Electronic ECM Electronic ECM |
| Displacement | 4.4L 4.4L |
| Compression Ratio | 18.23:1 18.23:1 |
PRO100-1 Standard Equipment
Engine
- Air Cleaner
- Lube oil drain valve
- Engine filled with lubrication oil
- High Coolant Temperature Shutdown
- Low Oil Pressure Shutdown
Cooling
- Package mounted radiator
- Radiator & Cooling Fan
- Coolant drain line with internal brass ball control valve piped to base-frame •
- Pusher fan with guards
- Cooling package mounted radiator with high ambient capability
Exhaust
- Integrated spark arresting silencer with flexible connectors, in separate compartment
Fuel
- 410 L double wall fuel tank, 20 hr runtime @ 75% prime rating
- Auxiliary connections for customer supplied fuel transfer with 3 way fuel transfer system, internally mounted within the bunded area.
Alternator
- Leroy Somer
- SHUNT Excitation
- IP23 Protection
Control Panel
- DeepSea DSE7320
Mounting
- Generator set soft mounted using captive vibration mounts
- Heavy duty steel base frame contains integral double wall fuel tank
- Provides 110% spill containment of all engine fluids
- Forklift pockets and heavy duty drag bar with skid plates
PRO100-1 Optional Equipment
Exhaust
- Industrial, Residential, Critical Silencers
Alternator
- Coastal insulation protection
- Anti-Condensation Heater and Panel Circuitry
Starting and Charging
- 12V battery charger
- UL/CSA listed 120 V, 20 Amp battery charger, shock mounted and enclosed in dust proof housing
General
- CE socket box with integrated MCB and RCBO protection
- Clipsal socket box with integrated MCB and RCBO protection
- Anti-condensation heater 110 or 230 VAC
- Coolant heater 110 or 230 VAC
- Lube oil sump pump
